Product Details:
|
| Item Name: | Grating Ruler SINO KA500-120mm | Application: | Linear Encoder Digital Readout System |
|---|---|---|---|
| Usage: | Scaling Position Sensor | Customized Length: | 320mm/370mm/420mm/470mm |
| Length: | 70mm/120mm/170mm/220mm | Material: | Aluminum |
| Function: | EDM/Lathe/Grinding/Boring Machine/CNC Machine | Resolution: | 0.5/1/5 μm |
| High Light: | Linear Scale Encoder 5um,120mm Travel Length Linear Scale Encoder |
||

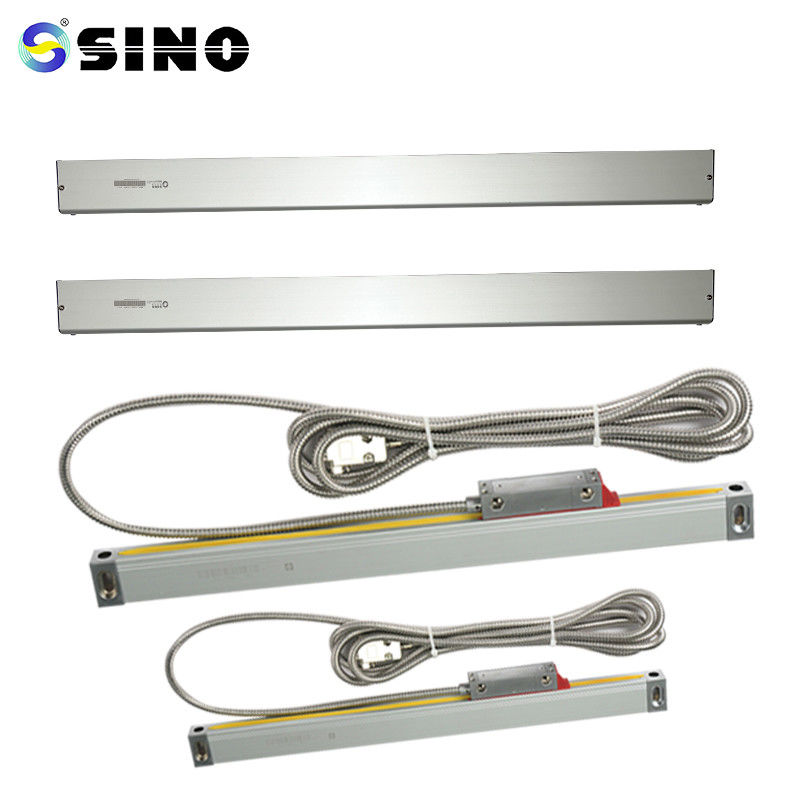

Optical Linear Scale Encoder 5um 120mm Travel Length for 3 Axis 2 Axis Digital Readout System Lathe Machine
Specially designed for machine tools with constrained installation and operation space is the KA-500 mini-encoder. It is possible to satisfy the needs of clients who have positional criteria. The length is 70 x 470 mm.
Package includes:
Grating linear scale, 1 piece, KA500-120mm
0.5/1/5 m of resolution is available.
Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)
| Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
| KA500-70 | 70 | 172 | 182 | KA500-320 | 320 | 422 | 432 |
| KA500-120 | 120 | 222 | 232 | KA500-370 | 370 | 472 | 482 |
| KA500-170 | 170 | 272 | 282 | KA500-420 | 420 | 522 | 532 |
| KA500-220 | 220 | 322 | 332 | KA500-470 | 470 | 572 | 582 |
| KA500-270 | 270 | 372 | 382 |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Operating Instructions
It is necessary for the user to read the General Description, Safety Considerations, and
the whole contents of Chapter 1 3.
2. In addition to the General Description, Safety Considerations, and all the information in
The specialists must meticulously follow Chapters 1 through 3 for installation, testing, and repair.
comprehend each and every idea from chapters 4-5.
Only the SINO KA series of integrated circuits are covered by this operation guide.
encoded linearly.
4. Please review the safety advice listed below. It includes crucial details regarding
Make safe usage of your linear encoder.
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
