|Item Name:||Linear Encoder SINO KA500-170mm||Application:||Grating Ruler Digital Readout Counter|
|Usage:||Scaling Position Sensor||Customized Length:||320mm/370mm/420mm/470mm|
|Function:||EDM/Lathe/Grinding/Boring Machine/CNC Machine||Resolution:||0.5μm/1μm/5μm|
120MM Linear Scale Digital Readout For Lathe,
Linear Scale Digital Readout
SINO KA300-120MM-5UM Small Linear Scale Digital Readout for Small Lathe Drilling Milling Machine
The KA-500 mini-encoder was specifically created for machine tools with limited installation and operation space. Clients with positional requirements can have their demands met. The dimensions are 70 x 470 mm.

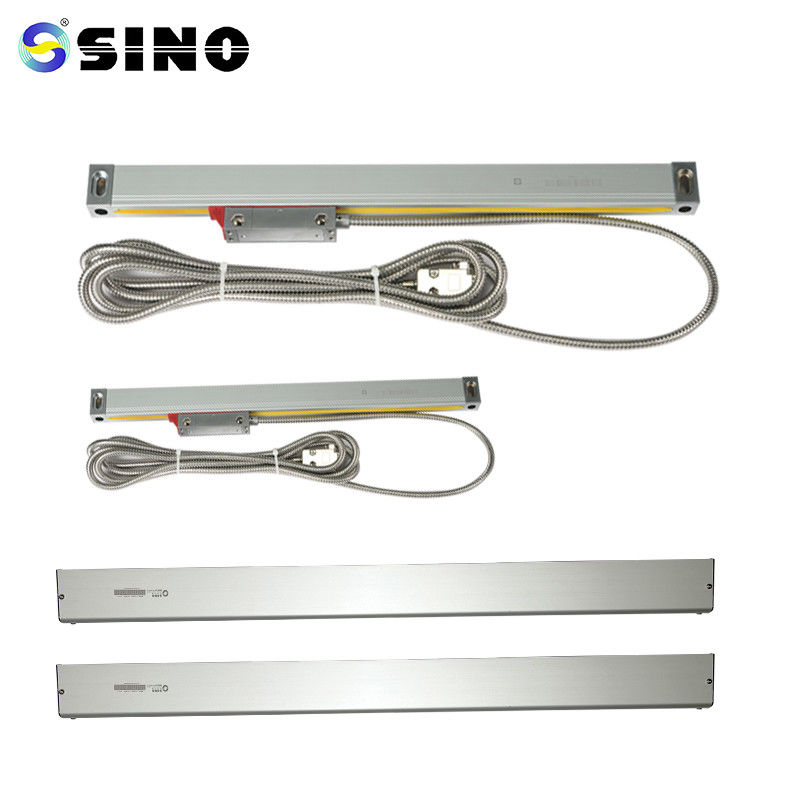

Linear scale grating, 1 piece, KA500-170mm
There is a resolution of 0.5um/1um/5um.
Depending on the requirements of the customers, customized encoder lengths (L0) can be offered.(Length:70-470mm)
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
The user must go through the General Description, Safety Considerations, and
the entirety of Chapter 1's content 3.
2. In addition to the General Description, the Safety Considerations, and all of the data in
Chapters 1 through 3 must be carefully followed by the specialists for installation, testing, and maintenance.
understand every single concept from chapters 4-5.
This operating manual only covers the SINO KA series of integrated circuits.
4. Please read the safety recommendations provided below. It contains essential information about
Use your linear encoder carefully.
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
Contact Person: Mr. Piero Chan
