Product Details:
|
| Item Name: | SINO KA500 Optical Sensor Linear Scale | Application: | Slim Scale With Digital Readout |
|---|---|---|---|
| Usage: | Glass Encoder Scaling Position Sensor | Customized Length: | 70mm/120mm/170mm/220mm |
| Length: | 320mm/370mm/420mm/470mm | Material: | Aluminum |
| Function: | EDM/Lathe/Grinding/Boring Machine | Resolution: | 0.5/1/5 μm |
| High Light: | Aluminum Slim Linear Scale,1um Optical Sensor Slim Linear Scale |
||

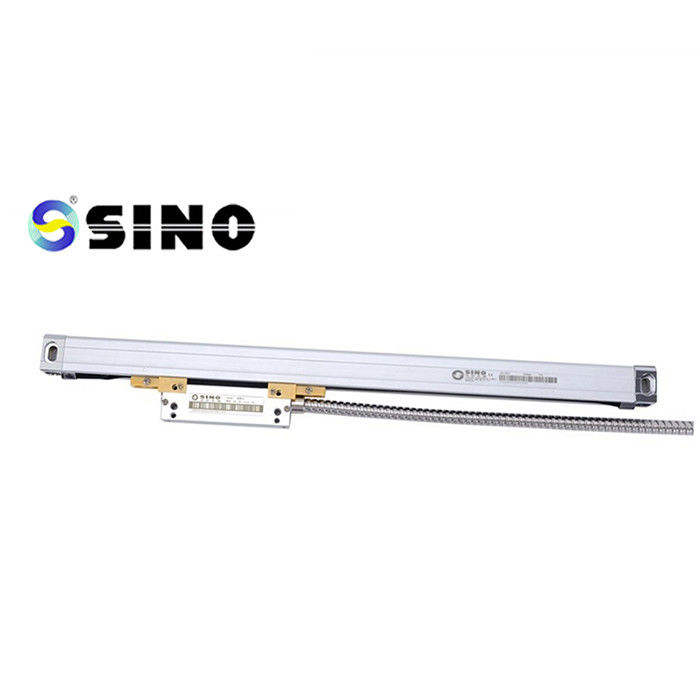

Linear Scale Slim Scale EIA-422 Output 5um 1um Optical Sensor for Lathe Boring Milling Machine
Package includes:
Glass linear scale, 1 piece, KA500-470mm
0.5/1/5 m of resolution is available.
Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)
| Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
| KA500-70 | 70 | 172 | 182 | KA500-320 | 320 | 422 | 432 |
| KA500-120 | 120 | 222 | 232 | KA500-370 | 370 | 472 | 482 |
| KA500-170 | 170 | 272 | 282 | KA500-420 | 420 | 522 | 532 |
| KA500-220 | 220 | 322 | 332 | KA500-470 | 470 | 572 | 582 |
| KA500-270 | 270 | 372 | 382 |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Operating Guidelines:
The user must go through the General Description, Safety Considerations, and
the entirety of Chapter 1's content 3.
The General Description, the Safety Considerations, and all of the details in
The specialists must strictly abide by Chapters 1 through 3 when performing installation, testing, and maintenance.
understand every single concept from chapters 4-5.
This operation manual only addresses the SINO KA series of integrated circuits.
simple coding.
4. Please read the safety recommendations provided below. It contains essential information about
Use your linear encoder carefully.
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
Contact Person: Mr. Piero Chan
Tel: 13580328854
