Product Details:
|
| Item Name: | SINO KA500-170mm Linear Encoder | Application: | 5um Linear Scale Optical Sensor |
|---|---|---|---|
| Usage: | Scaling Position Sensor | Customized Length: | 70mm/120mm/170mm/220mm |
| Length: | 320mm/370mm/420mm/470mm | Material: | Aluminum |
| Function: | EDM/Lathe/Grinding/Boring Machine/CNC Machine | Resolution: | 0.5μm/1μm/5μm |
| High Light: | LCD Digital 2 Axis DRO Kit,Linear Scale 2 Axis DRO Kit |
||

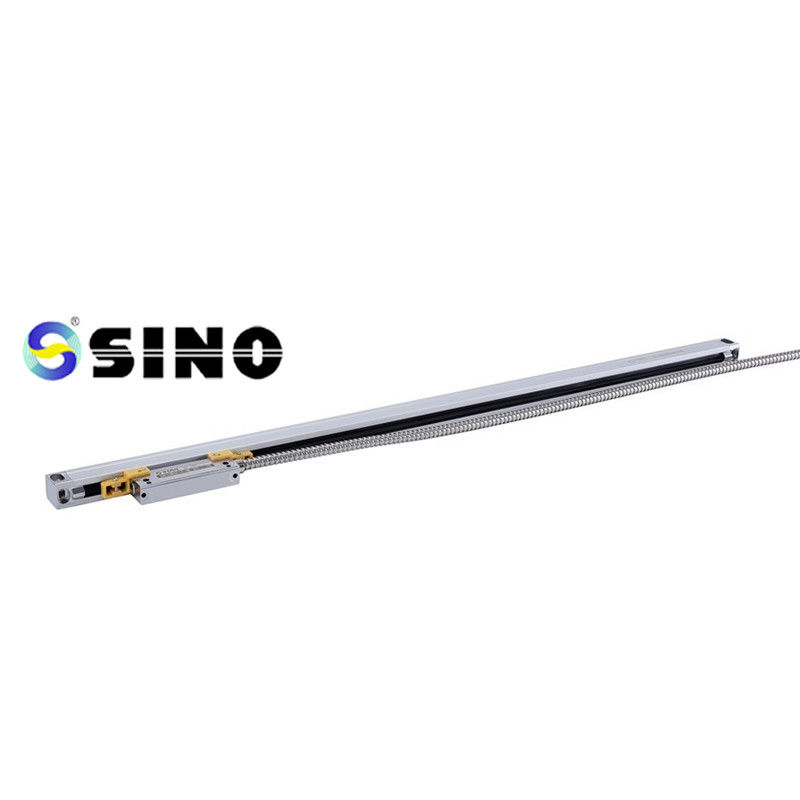

2 Axis DRO Kit LCD Digital Readout Display 5um Linear Scale Optical Sensor Glass Scale Ruler For Lathe Milling Machine
Specially designed for machine tools with constrained installation and operation space is the KA-500 mini-encoder. Positional requirements from clients can be accommodated. The size is 70 by 470 millimeters.
Package includes:
Linear scale grating, 1 piece, KA500-170mm
There is a resolution of 0.5um/1um/5um.
Depending on the requirements of the customers, customized encoder lengths (L0) can be offered.(Length:70-470mm)
| Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
| KA500-70 | 70 | 172 | 182 | KA500-320 | 320 | 422 | 432 |
| KA500-120 | 120 | 222 | 232 | KA500-370 | 370 | 472 | 482 |
| KA500-170 | 170 | 272 | 282 | KA500-420 | 420 | 522 | 532 |
| KA500-220 | 220 | 322 | 332 | KA500-470 | 470 | 572 | 582 |
| KA500-270 | 270 | 372 | 382 |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Operating Instructions
It is necessary for the user to read the General Description, Safety Considerations, and
the whole contents of Chapter 1 3.
In addition to the Safety Considerations, the General Description, and all of the information in
For installation, testing, and maintenance, the specialists must closely adhere to Chapters 1 through 3.
comprehend each and every idea from chapters 4-5.
The SINO KA series of integrated circuits are the only ones covered in this operating handbook.
linear coding.
4. Please review the safety advice listed below. It includes crucial details regarding
Take care when using your linear encoder.
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
