Item name	3 axis mini size metal LCD milling machine Readout kit
Digital Readout (DRO)	SDS200
Linear scale for axis X	1000-3000mm
Linear scale for axis Y	70-1020mm
Rack for DRO	L400
Protection cover for X scale	Type M
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 or 2 sets, depend on the size)
Others	Cable / Screws / Manual

Advantages

-Five language support options: Chinese, German, French, English, and Spanish

-Touch Screen, simple to operate

- Efficient, straightforward system

-A large LCD screen with legible text

Features

All Chinese optical linear glass scales are compatible with the LCD display, which is widely used for lathe, drilling, boring, and milling equipment.

Lathes and milling machines are more beneficial for users from many countries thanks to its ability to switch between 5 languages via system on a single display.

Parameter

Model SDS200S

AC80V-240V as the input voltage

input signal for TTL

as a material, metal covers

USA, UK, EU, etc.

Detail Information:

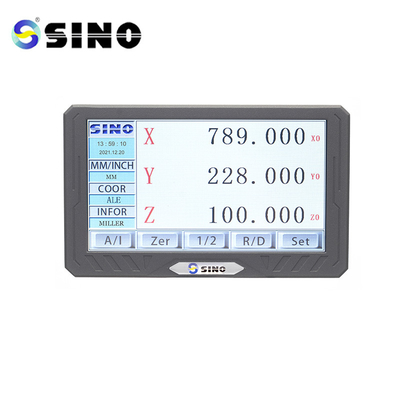

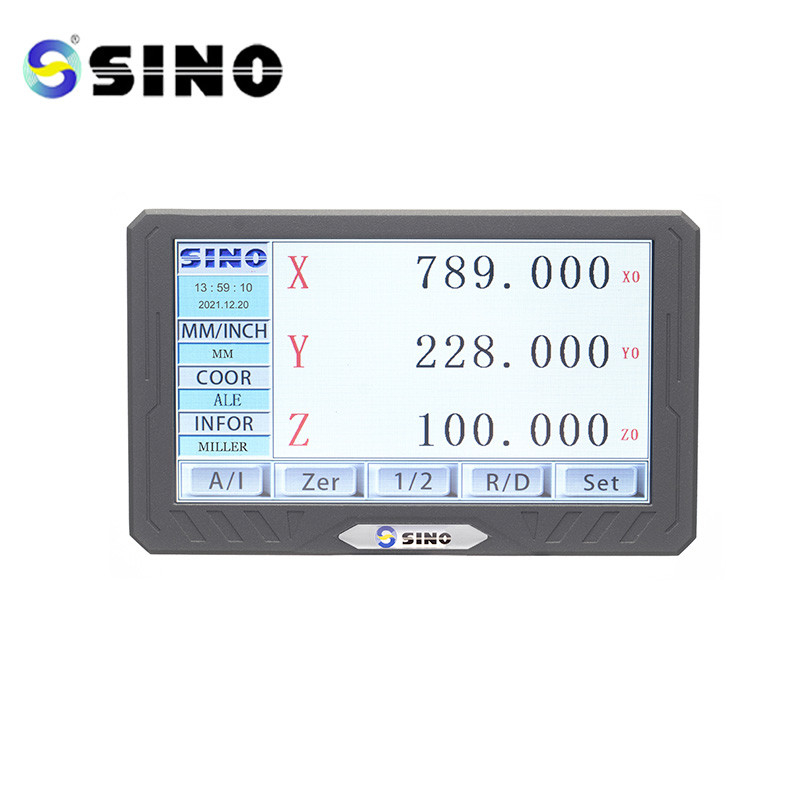

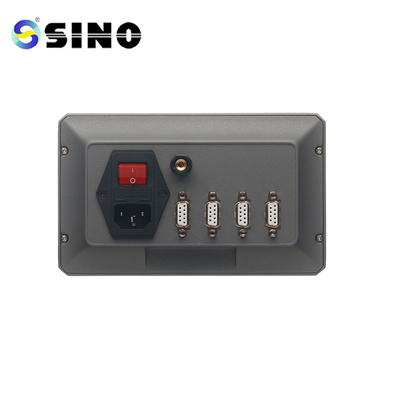

3 Axis Migital LCD Digital Readout Display SINO SDS200S Linear Optical Encoder 0

3 Axis Migital LCD Digital Readout Display SINO SDS200S Linear Optical Encoder 1

3 Axis Migital LCD Digital Readout Display SINO SDS200S Linear Optical Encoder 2

3 Axis Migital LCD Digital Readout Display SINO SDS200S Linear Optical Encoder 3

Pin Description:

3 Axis Migital LCD Digital Readout Display SINO SDS200S Linear Optical Encoder 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

3 Axis Migital LCD Digital Readout Display SINO SDS200S Linear Optical Encoder 5
