Product Details:
|
| Item Name: | R Series Radial Servo Power Turret | Usage: | CNC Drilling Milling Turning Boring |
|---|---|---|---|
| Application: | R63A Electric Turning Tools | Power Tool Speed: | 6000rpm |
| Rotating Time: | 0.23sec. | Total Indexing Time For 180: | 0.55sec. |
| Clamping Force: | 1700kg | Hydraulic Working Pressure: | 3.5±0.5MPa |
| Flow Rate: | 18L/min |

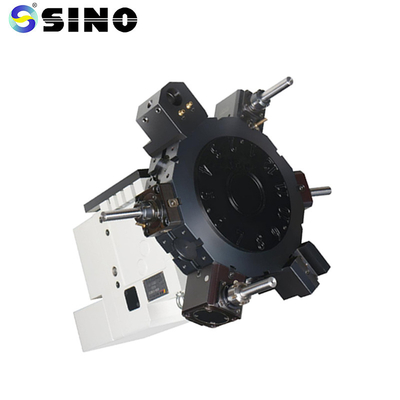

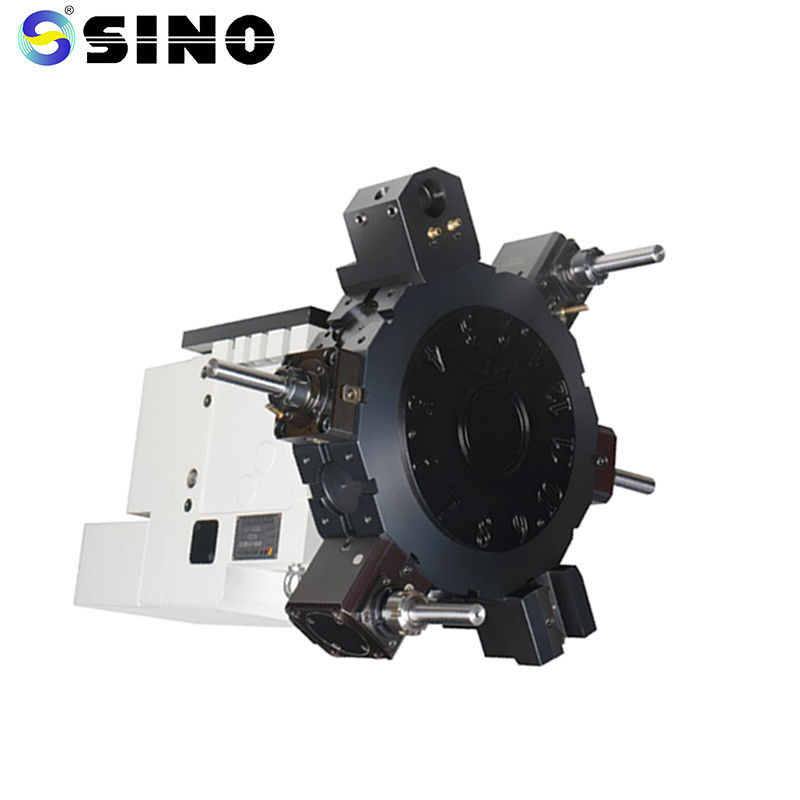

R Series Radial Servo Power Turret CNC Drilling Milling Turning Boring Tools SINO R63A Electric
Product detail:
1. R series radial servo power turret with SLT servo turret as
the base, supplemented by radial power module of
combined structure, compact layout and reasonable
structure.
2. Three piece precision end gear disc and hydraulic locking
device, high positioning accuracy, strong rigidity and high
reliability.
3. The tool power is provided by independent power motor,
with high torque and low noise. Modular interface to adapt
to various servo motors.
4. Each work station can be fitted with a power tool holder to
provide power at the work station only. BMT tool holders
conforming to Doosan corporate standards are applicable,
and the coupling interface conforms to DIN1809.
