Product Details:
|
Item Name: | Miniature Optical Scale SINO KA200 | Application: | Digital Readout Systems And A Small Linear Encoder |
---|---|---|---|
Usage: | Sensor Position Scaling | Customized Length: | 300mm/400mm/50mm/60mm |
Length: | 70mm/80mm/90mm/100mm | Material: | Aluminum |
Function: | EDM/Lathe/Grinding/Boring Machine | Resolution: | 0.5μm/1μm/5 μm |
High Light: | SINO SINO KA200 Glass Linear Encoder Scale,High Resolution Glass Linear Encoder Scale |

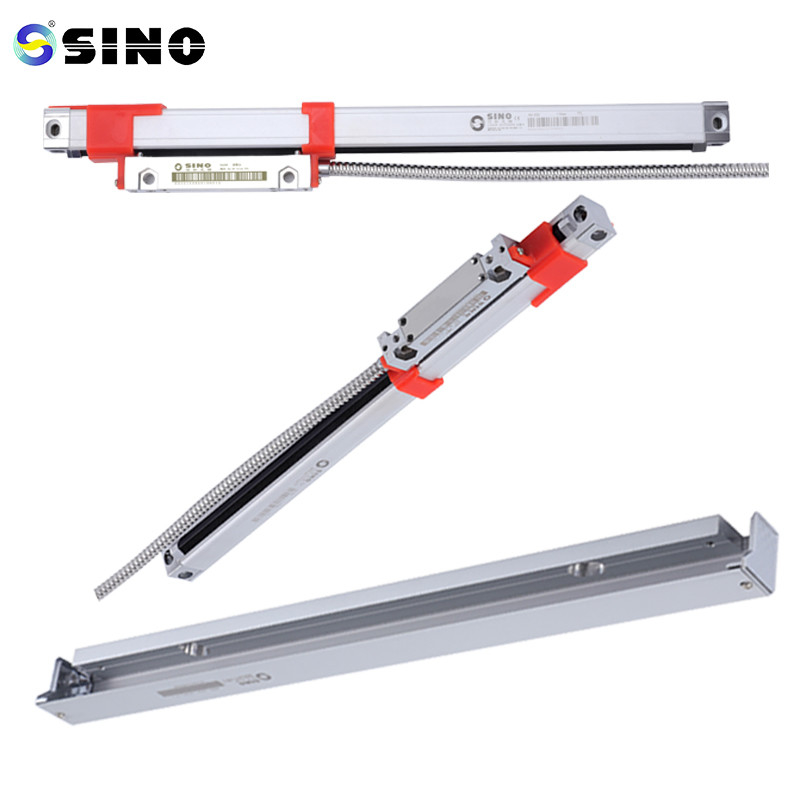

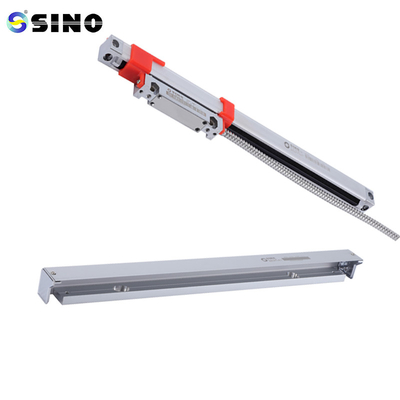

High Resolution Linear Scale SINO KA200 Glass Linear Scale Linear Encoder Scale For Milling Machine
Package contains:
Short Linear Glass Scale, KA200-40mm, 1 piece
KA-200, a mini-encoder smaller than KA-500, is designed based on KA-500 by optimizing the internal and external structure. It is suitable to the equipment on whicthe installation is restricted and the space is even smaller. The length is 30-360mm.
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
