Product Details:
|
Item Name: | Miniature Optical Scale Encoder SINO KA200+SDS200 Dro | Application: | A Tiny Linear Encoder And A Digital Readout Counter |
---|---|---|---|
Usage: | Scaling Of Sensor Position | Customized Length: | 30mm/40mm/50mm/60mm |
Length: | 70mm/80mm/90mm/100mm | Material: | Aluminum |
Function: | EDM/Lathe/Grinding/Boring Machine | Resolution: | 0.5μm/1μm/5 μm |
High Light: | 60mm Ruler Glass Linear Encoder,Miniature Thin Glass Linear Encoder,SDS200 Glass Linear Encoder |

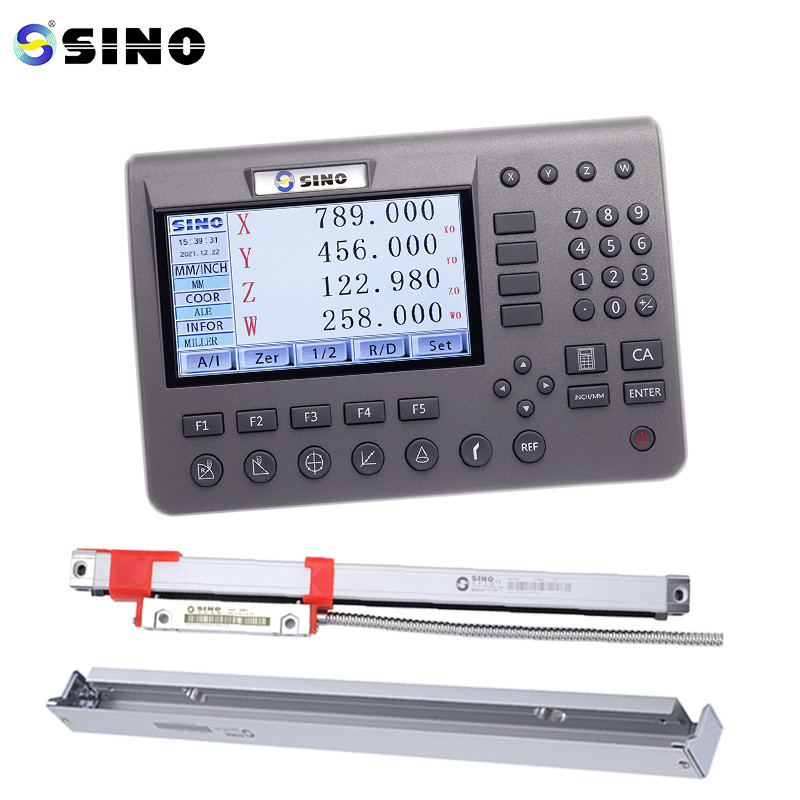

Miniaturethin Ruler Linear Scale SINO KA200-60mm Glass Linear Encoder Scale Mini SDS200 DRO
Package includes:

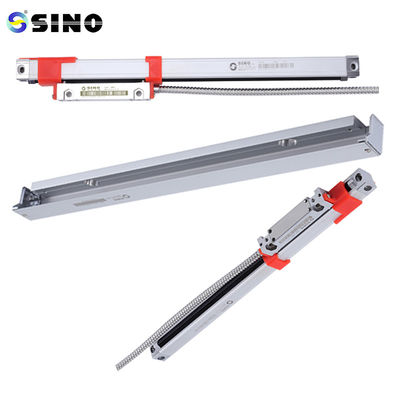

Short Linear Glass Scale, 1 piece, KA200-60mm
The internal and external structure of KA-500 were optimized to develop the mini-encoder KA-200, which is smaller than KA-500. It is suited for machinery when space is at a premium and installation is restricted. The size is 30-360mm.
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
