Product Details:
|
| Item Name: | Optical Scale SINO KA200-90mm, In Miniature | Application: | Digital Readout Technology And A Small Linear Encoder |
|---|---|---|---|
| Usage: | Sensor Position Scaling | Customized Length: | 30mm/40mm/50mm/60mm |
| Length: | 70mm/80mm/90mm/100mm | Material: | Aluminum |
| Function: | EDM/Lathe/Grinding/Boring Machine/Milling Machine | Resolution: | 0.5μm/1μm/5 μm |
| High Light: | DRO Linear Encoder Scale,2 Axis Linear Encoder Scale |
||
2 Axis DRO Linear Encoder Scale For Milling Machine Linear Scale SINO KA200-90mm Glass Linear Scale
Package includes:
One piece of a short linear glass scale, KA200-80mm
The KA-200 grating ruler has improved internal and external architecture and is based on the KA-500 grating ruler.
The micro grating ruler is appropriate for applications with limited installation and location on smaller devices since it is designed to have a smaller structural size than the KA-500. 30 to 360 mm is the length of use.

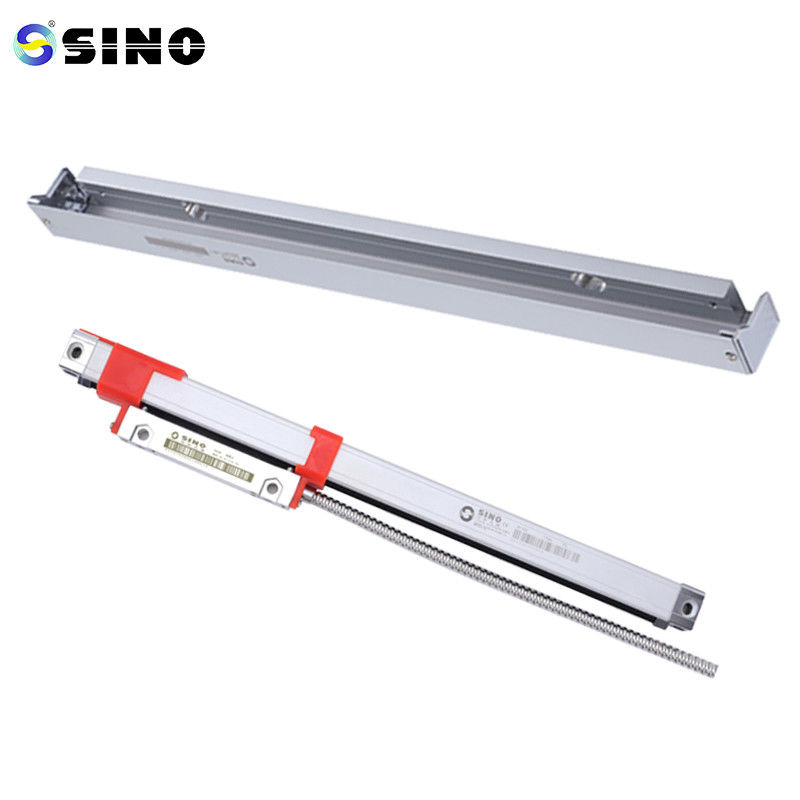

installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
