Metal Sino SDS5-4VA Digital Display Meter With Four Axis LCD Screen General Readouts

Brand Name:	SINO
Model Number:	SDS5-4VA, KA300, Ka500
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

Sino SDS5-4VA Digital Display Controller Glass Linear Encoder

Number Of Axis:

Axis Five Axes DRO Measuring Machine

Color:

Grey

Signal:

Digital Readout Kits: TTL / RS422

Voltage:

Digital Readout System: AC100-240V / 50-60Hz

Suitable For:

Milling Lathe, Boring Machine, CNC Machine

Resolution:

1um,5um,0.5um

Material:

Metal

Function:

Brigntness Adjustment

Number Of Axes:

1/2/3/4/5

Voltage Range:

50HZ~60HZ

Resolution-μm:

0.1/0.2/0.5/ 1/2/5/10

Supply Ability:

1000 pcs per month

Highlight:

SDS5-4VA Digital Display Meter

Metal Sino Digital Display Meter

Four Axis Digital Display Meter

Product Description

Metal Sino SDS5-4VA Digital Display Meter 4 Axis Lcd Screen General Readouts

The SDS5 DRO each axis have up to 600 Non-linear Error compensation points, with dual frequency laser instrument and intelligent software developed by Loksshun, a data file is created and stored in the hard disc after contrastively measure for data processing, it was used to minimize error of the later measure.

SDS5-4VA DRO Measuring Machine Functions:

1. Mn//inch Conversion of measurements

2. Absulute/Relative Transformation

3. Compensation for Linearity Error

4. Midsplit Function

5. Zero Adjustment

6. Mark of Absolute Reference

7. Resolution Setting

Specifications of SINO SDS5-4VA digital readout system + Grating Ruler

Specification

Item: SINO SDS5-4VA Digital Readout System

Type: Luxury Type DRO

Input:Four axis

Iutput Signal: TTL/RS-422

Housing: Metal

Application: Glass Scales for CNC or manual Lathes, milling /boring/grinding machine,EDM

Uage: Position Measuring Instrument for single/2/3/4 Axis grating scale

Certification: CE,ROHS,ISO9001

Sealing Protection Class: IP67

Feature: Sturdy and durable, easy to install,user-friendly

Machinery Test Report: Provided

Feature:
Five-axis input, four-axis display; High-speed data transfer between
USB devices and PCs with RS 485 and RS-232 communication
capabilities. The facilitation of system upgrades; The key uses a
fretted metal shrapnel switch

Packaging List :

1 PC	4 Axis LED digital readout SDS5-4VA
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

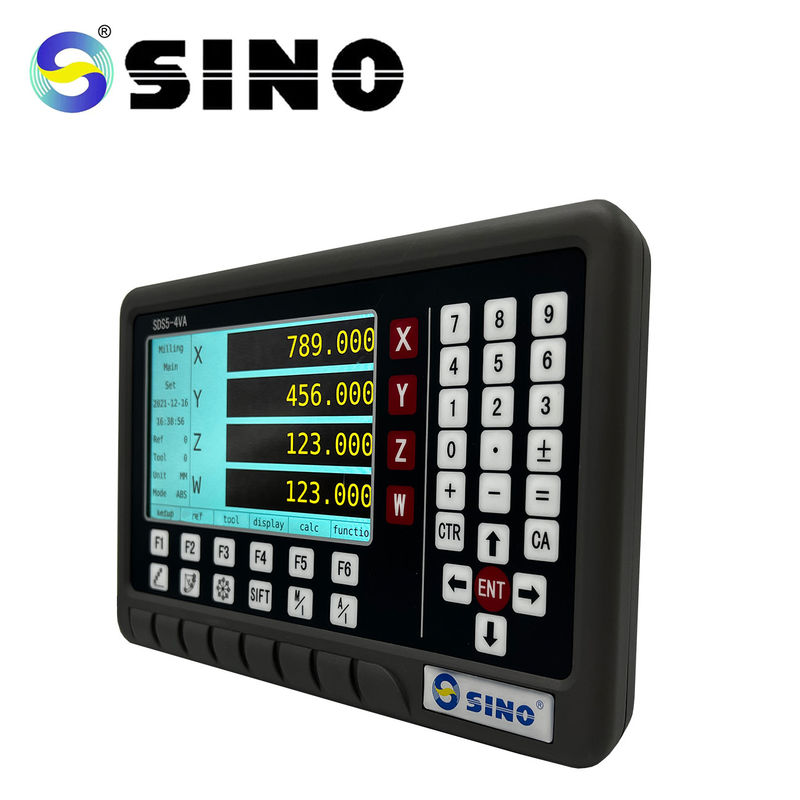

Metal Sino SDS5-4VA Digital Display Meter With Four Axis LCD Screen General Readouts 0

Metal Sino SDS5-4VA Digital Display Meter With Four Axis LCD Screen General Readouts 1

The rack in the picture is optioned, not standard product.

Metal Sino SDS5-4VA Digital Display Meter With Four Axis LCD Screen General Readouts 2
