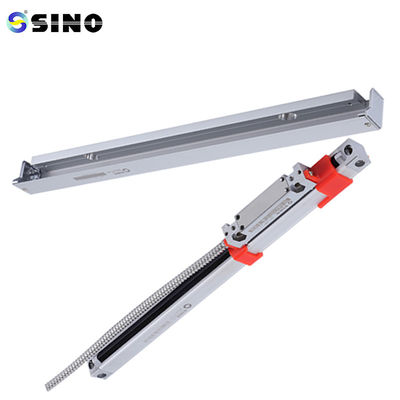

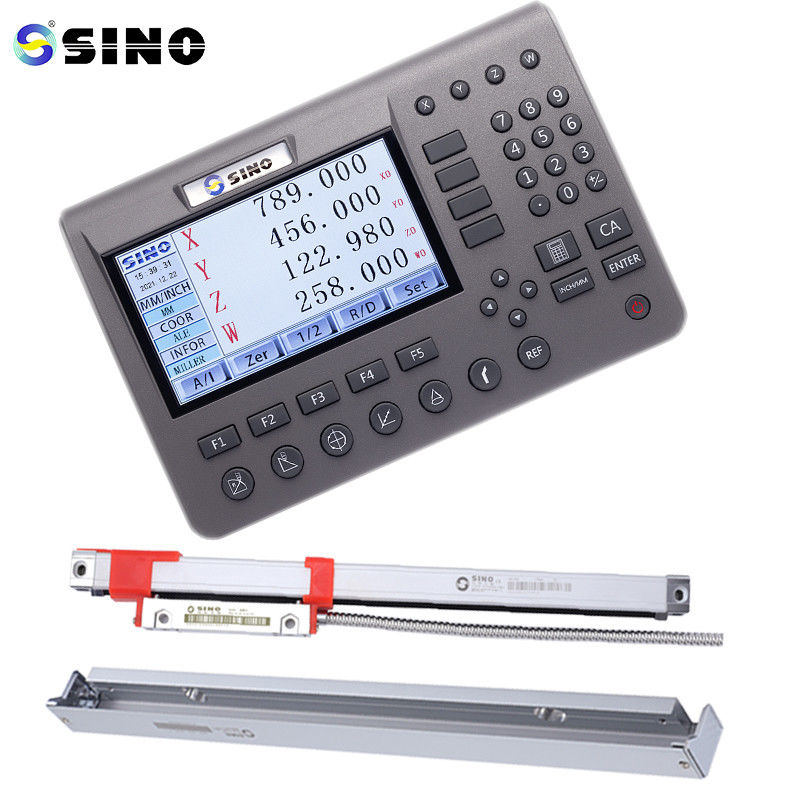

All types of rulers are to be installed on different machines, which depends on the available installation height & length. The type Sino KA-200 is the smallest ruler in the market, To the small space on machine, KA-200 with 16mm*16mm cross section may be the best choice.

KA-200 is a super-miniature thin ruler,it facilitates the use in somenarrow placesand the installation of special purpose measuring instrument.For the KA Series of linear encoder,every ruler has passed through the strict quality measure technology dynamic laser control is used to ensure that the precision of every ruler has met the required standard before being deliveried from the factory.

Parameter KA-200

30mm-360mm in available measurement length

16mm x 16mm in cross section

Accuracy: +/- 3, 5, 10 (680 F, 1000 mm)

One unit is equal to 50 millimeters.

Maximum measurement speed: 60 m/s

IP55 protection level

1 um/ 5 um (0.001 mm/ 0.005 mm) resolution

Signal for output: TTL/EIA-422-A

Standard for cables: 2 meters

Bar Pitch: 0.02 mm

80mA at +5%, +5V

Operating range: 0 to 45 degrees Celsius

9-Pin Connector

A, OV, B, Empty, 4.Empty, 5.Z, 6.A, +5V, 7.B, and 9.Z

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
