| Item Name: | SINO KA200-320mm Glass Scale Ruler In Miniature | Application: | Combining Digital Readout Technology And A Small Linear Encoder |
|---|---|---|---|
| Usage: | Scaling Of Sensor Position | Customized Length: | 110mm/120mm/130mm/140mm |
| Length: | 150mm/160mm/170mm/180mm | Material: | Aluminum |
| Function: | EDM/Lathe/Grinding/Boring Machine/Milling Machine | Resolution: | 0.5μm/1μm/5 μm |
| High Light: | SINO KA200 Linear Scale Encoder,5um Linear Scale Encoder |
||

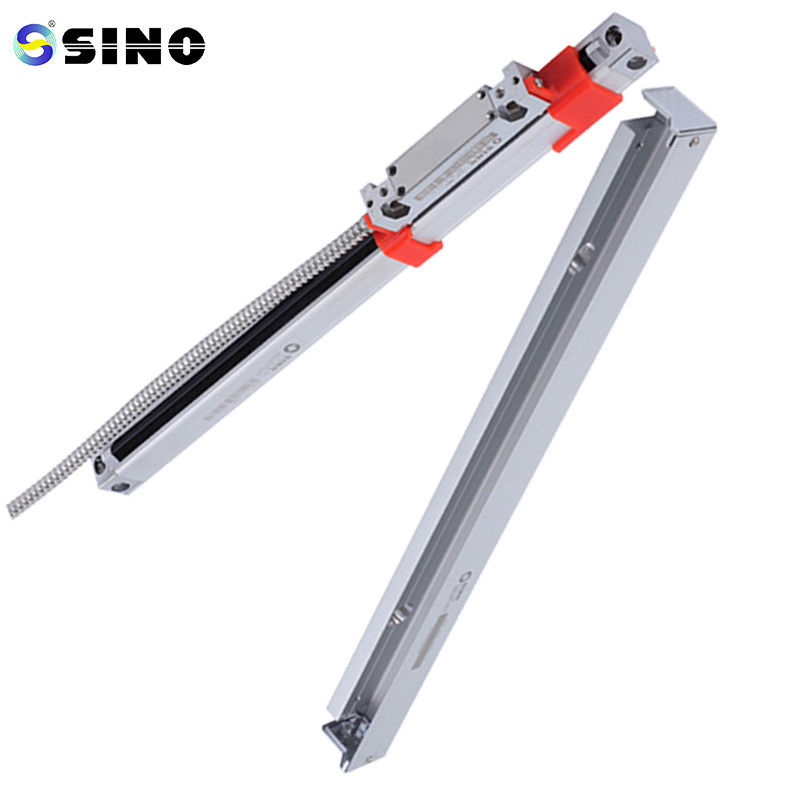

SINO Linear Scale Encoder 5um KA200 320mm For Lathe Machine Milling Machine DRO Tools
package contains:
Depending on the installation height & length that are accessible, all sorts of rulers must be fitted on various machines. The Sino KA-200 type is the smallest ruler available. Given the limited space on the machine, the KA-200 with a cross section of 16mm*16mm would be the best option.
The KA-200 is a super-tiny, thin ruler that makes it easier to install specialized measurement equipment and use in some tight spaces.Before being shipped out of the plant, each ruler for the KA Series of linear encoder has undergone a stringent quality control process using dynamic laser control.
Parameter KA-200
30mm-360mm in available measurement length
16mm x 16mm in cross section
Accuracy: +/- 3, 5, 10 (680 F, 1000 mm)
One unit is equal to 50 millimeters.
Maximum measurement speed: 60 m/s
IP55 protection level
1 um/ 5 um (0.001 mm/ 0.005 mm) resolution
Signal for output: TTL/EIA-422-A
Standard for cables: 2 meters
Bar Pitch: 0.02 mm
80mA at +5%, +5V
Operating range: 0 to 45 degrees Celsius
9-Pin Connector
A, OV, B, Empty, 4.Empty, 5.Z, 6.A, +5V, 7.B, and 9.Z
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
