SINO KA500-70mm Glass Linear Scale CNC Linear Encoder Scale Position Sensor Scaling

Brand Name:	SINO
Model Number:	KA500-70mm
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO KA500 Optical Encoder Glass Linear Scale

Application:

Digital Readout Linear Encoder

Usage:

Position Sensor Scaling

Customized Length:

70mm/120mm/170mm/220mm

Length:

320mm/370mm/420mm/470mm

Material:

Aluminum

Function:

EDM/Lathe/Grinding/Boring Machine

Resolution:

0.5/1/5 μm

Supply Ability:

3000 sets per month

Highlight:

SINO KA500-70mm Glass Linear Scale

Glass Linear Scale Position Sensor Scaling

320mm Length Glass Linear Encoder

Product Description

Lectura Digital 5um SINO KA500-70mm Glass Linear Scale CNC Linear Encoder Scale

Package includes:

One piece of linear glass scale, KA500-70mm

0.5/1/5 m of resolution is available.

Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)

Model	L0	L1	L2	Model	L0	L1	L2
KA500-70	70	172	182	KA500-320	320	422	432
KA500-120	120	222	232	KA500-370	370	472	482
KA500-170	170	272	282	KA500-420	420	522	532
KA500-220	220	322	332	KA500-470	470	572	582
KA500-270	270	372	382

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Equipped with a closed H cover and installation pads for easier installation and installation on equipment without installation space.
Stable and Durable: The cross-sectional size of 18*20mm makes it more convenient and practical to install on smaller machinery and equipment.
Customer Services: Each of the linear scales we produce has been strictly controlled when leaving the factory, and finally delivered to your hand. After you receive the goods, please open the package and gently slide the sensor to check if there is a problem. , If there is a problem during transportation, please don’t panic, we will reissue new products for you.

Detail Information:

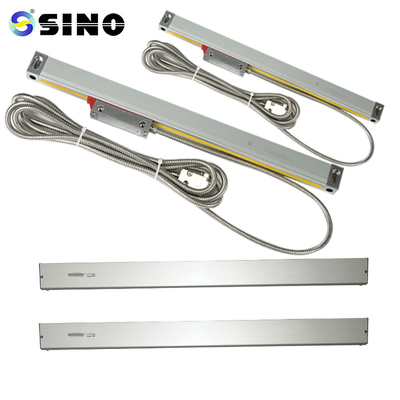

SINO KA500-70mm Glass Linear Scale CNC Linear Encoder Scale Position Sensor Scaling 0

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

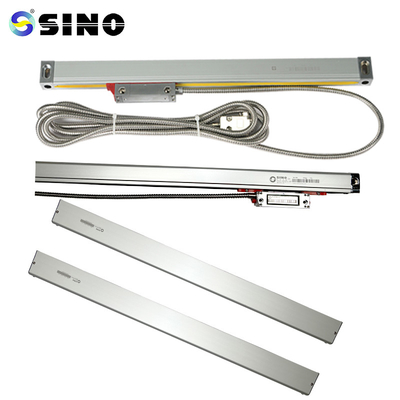

SINO KA500-70mm Glass Linear Scale CNC Linear Encoder Scale Position Sensor Scaling 1
