Product Details:
|
| Item Name: | SINO KA600-1100mm Optical Encoder Digital Systems | Application: | Linear Encoder With M Cover Digital Readout Systems |
|---|---|---|---|
| Usage: | Position Sensor Scaling | Customized Length: | 1000mm/1100mm/1200mm/1300mm/1400mm/1500mm |
| Length: | 1600mm/1700mm/1800mm/1900mm/2000mm | Material: | Aluminum |
| Function: | EDM/Lathe/Grinding/Boring Machine/Milling Machine | Resolution: | 0.5/1/5 μm |
| High Light: | DRO Systems Grating Linear Glass Scale,1um Linear Glass Scale,SINO KA600-1100mm Optical Encoder |
||

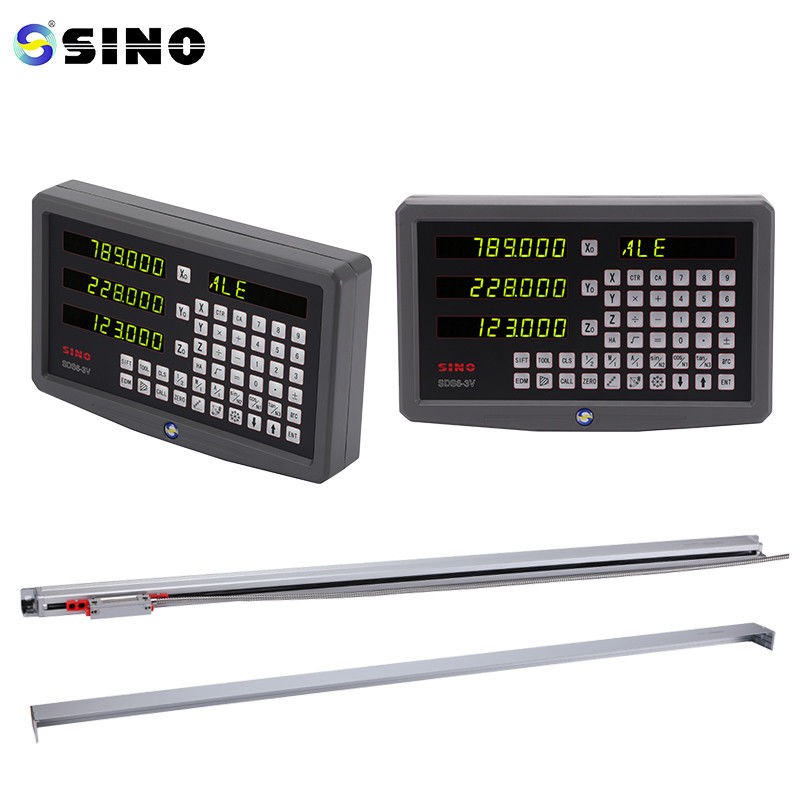

DRO Systems Grating Linear Glass Scale 5um 1um 0.5um SINO KA600-1100mm Optical Encoder
Package includes:
The SINO KA600 linear scale is a precision measuring device commonly used in various industries, including machining, manufacturing, and metrology. It is designed to provide accurate and reliable measurements of linear displacement or position.
The KA600 linear scale utilizes an incremental optical encoding system to determine the position of the scale's reading head. It typically consists of a glass or metal scale and a read head that moves along the scale as the measured object or machine component moves. The read head contains a light source and a photoelectric sensor that detects the graduations or marks on the scale.
| Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
| KA600-1000 | 1000 | 1150 | 1170 | KA600-2100 | 2100 | 2250 | 2270 |
| KA600-1100 | 1100 | 1250 | 1270 | KA600-2200 | 2200 | 2350 | 2370 |
| KA600-1200 | 1200 | 1350 | 1370 | KA600-2300 | 2300 | 2450 | 2470 |
| KA600-1300 | 1300 | 1450 | 1470 | KA600-2400 | 2400 | 2550 | 2570 |
| KA600-1400 | 1400 | 1550 | 1570 | KA600-2500 | 2500 | 2650 | 2670 |
| KA600-1500 | 1500 | 1650 | 1670 | KA600-2600 | 2600 | 2750 | 2770 |
| KA600-1600 | 1600 | 1750 | 1770 | KA600-2700 | 2700 | 2850 | 2870 |
| KA600-1700 | 1700 | 1850 | 1870 | KA600-2800 | 2800 | 2950 | 2970 |
| KA600-1800 | 1800 | 1950 | 1970 | KA600-2900 | 2900 | 3050 | 3070 |
| KA600-1900 | 1900 | 2050 | 2070 | KA600-3000 | 3000 | 3150 | 3170 |
| KA600-2000 | 2000 | 2150 | 2170 | |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
KA-600 encoder, which is specifically designed for large machine tool, features in
large size and good rigidity. Support may be added to any position of the encoder to
enhance the rigidity and stability. The length is 1000~3000mm.
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
