Product Details:
|
Item Name: | KA600-1300mm Linear Scale DRO Display | Application: | 2/3 Axis Digital Readout SINO SDS6-3V |
---|---|---|---|
Usage: | Position Sensor Scaling | Customized Length: | 1000mm/1100mm/1200mm/1300mm/1400mm/1500mm |
Length: | 1600mm/1700mm/1800mm/1900mm/2000mm/2100mm/2200mm | Material: | Aluminum |
Function: | EDM/Lathe/Grinding/Boring Machine/Milling Machine | Resolution: | 0.5/1/5 μm |
Highlight: | 3 Axis Digital Readout Linear Scale,SINO SDS6-3V Digital Readout Linear Scale,DRO Display 5um Glass Linear Encoder |

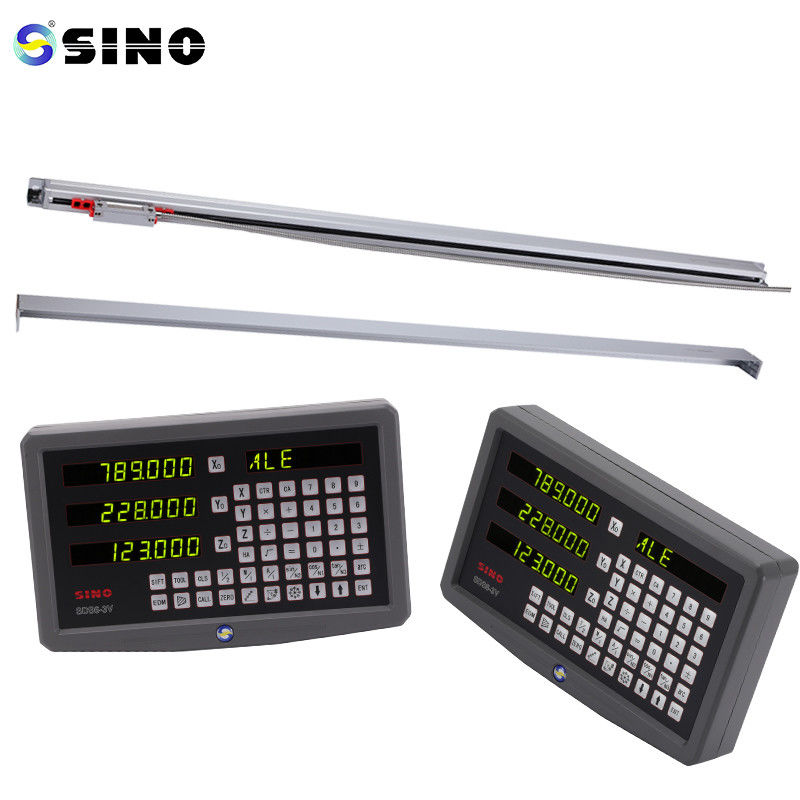

SINO KA600 1200mm 5micron TTL EIA-422-A DRO Linear Glass Scale Encoder
2/3 Axis Digital Readout SINO SDS6-3V KA600-1300mm Linear Scale DRO Display 5um
Package includes:
linear glass scale, 500–1200 mm, in one piece.
A 0.5/1/5um resolution is available.
Customized encoder lengths (L0) can be provided based on the needs of the customers.(Length:1000-3000mm)
Single-Turn vs. Multi-Turn: Absolute encoders can be classified as single-turn or multi-turn encoders. Single-turn encoders provide position information within one full revolution (360 degrees), while multi-turn encoders provide position information for multiple revolutions. Multi-turn encoders include additional sensing elements or mechanisms to track the number of complete revolutions.
Output: The electrical signals generated by the optical sensors are processed by an electronic circuit in the encoder, which converts them into a digital or analog output representing the absolute angular position. This output can be transmitted to a digital display, a controller, or a computerized system for further processing and control.
Accuracy and Precision: Absolute optical angle encoders are known for their high accuracy and precision. The accuracy is typically specified as the maximum deviation from the true position, while the precision refers to the ability to resolve small angular changes.
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
KA-600 encoder, which is specifically designed for large machine tool, features in
large size and good rigidity. Support may be added to any position of the encoder to
enhance the rigidity and stability. The length is 1000~3000mm.
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
