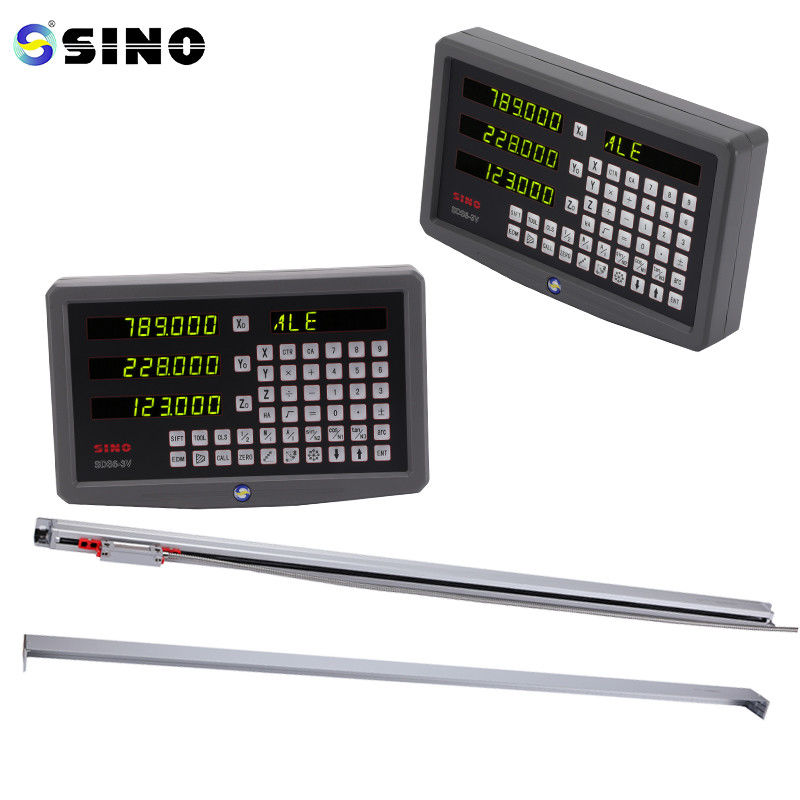

|Item Name:||Optical Encoder Glass Linear Scale SINO KA600-1800mm||Application:||Linear Encoder With Digital Readout Counter And M Cover|
|Usage:||Position Sensor Scaling||Customized Length:||1000mm/1100mm/1200mm/1300mm/1400mm/1500mm|
|Function:||EDM/Lathe/Grinding/Boring Machine/Milling Machine||Resolution:||0.5/1/5 μm|
KA-600 SINO Linear Encoder,
1800mm Grating SINO Linear Encoder
KA600 KA-600 SINO Linear Encoder Optical Ruler Glass Scales 5V TTL 1800mm Grating Encoder Scale
KA500-1800mm linear glass scale, one piece.
There is a resolution of 0.5/1/5um.
Depending on the requirements of the customers, customized encoder lengths (L0) can be offered.(Length:1000-3000mm)
The SINO KA600 linear scale is known for its high precision, durability, and resistance to environmental factors such as dust, temperature variations, and vibrations. It is commonly used in conjunction with milling machines, lathes, coordinate measuring machines (CMMs), and other industrial equipment that require precise positioning or dimensional measurements.
Unlike incremental encoders that provide relative position information based on incremental changes in position, absolute optical angle encoders provide an absolute position value for every angular position within their range. This means that even if power is lost or the system is turned off, the encoder retains its position information and can provide it immediately upon power-up.
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
KA-600 encoder, which is specifically designed for large machine tool, features in
large size and good rigidity. Support may be added to any position of the encoder to
enhance the rigidity and stability. The length is 1000~3000mm.
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
