Product Details:
|
Item Name: | SINO KA600-1900mm Glass Linear Scale Optical Encoder | Application: | M Cover Digital Readout Counter In A Linear Encoder |
---|---|---|---|
Usage: | Position Sensor Scaling | Customized Length: | 1000mm/1100mm/1200mm/1300mm/1400mm/1500mm |
Length: | 1600mm/1700mm/1800mm/1900mm/2000mm/2100mm/2200mm | Material: | Aluminum |
Function: | EDM/Lathe/Grinding/Boring Machine/Milling Machine | Resolution: | 0.5/1/5 μm |
High Light: | SINO KA600-1900mm Linear Scale,Glass Sensor DRO Linear Scale |

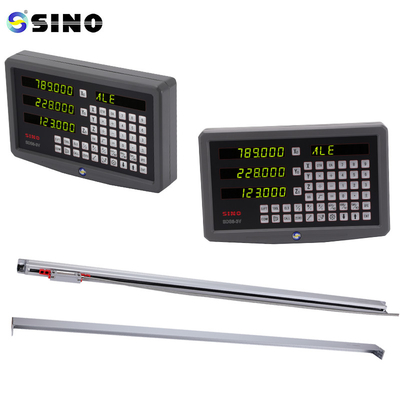

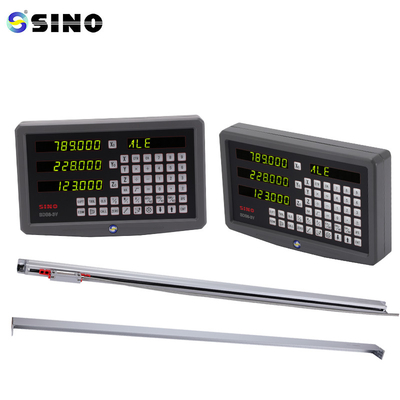

SINO KA600-1900mm Linear Scale Glass Sensor+DRO 3Axis Digital Read Out Display CNC Mill Lathe
Package includes:
linear glass scale, 0–1900 mm, in one piece.
A 0.5/1/5um resolution is available.
Customized encoder lengths (L0) can be provided based on the needs of the customers.(Length:1000-3000mm)
The SINO KA600 linear scale is a precision measuring device commonly used in various industries, including machining, manufacturing, and metrology. It is designed to provide accurate and reliable measurements of linear displacement or position.
The operation of an absolute optical angle encoder typically involves a rotating disc or ring that contains a pattern of optical markings or codes. These markings are read by optical sensors or detectors, which convert the optical patterns into electrical signals. The electrical signals are then processed to determine the absolute angular position.
The optical markings on the encoder disc or ring can take various forms, such as binary codes, gray codes, or analog signals. The number of markings or codes determines the resolution or precision of the encoder. Higher-resolution encoders have more markings or codes, allowing for finer angular resolution.
Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
KA600-1000 | 1000 | 1150 | 1170 | KA600-2100 | 2100 | 2250 | 2270 |
KA600-1100 | 1100 | 1250 | 1270 | KA600-2200 | 2200 | 2350 | 2370 |
KA600-1200 | 1200 | 1350 | 1370 | KA600-2300 | 2300 | 2450 | 2470 |
KA600-1300 | 1300 | 1450 | 1470 | KA600-2400 | 2400 | 2550 | 2570 |
KA600-1400 | 1400 | 1550 | 1570 | KA600-2500 | 2500 | 2650 | 2670 |
KA600-1500 | 1500 | 1650 | 1670 | KA600-2600 | 2600 | 2750 | 2770 |
KA600-1600 | 1600 | 1750 | 1770 | KA600-2700 | 2700 | 2850 | 2870 |
KA600-1700 | 1700 | 1850 | 1870 | KA600-2800 | 2800 | 2950 | 2970 |
KA600-1800 | 1800 | 1950 | 1970 | KA600-2900 | 2900 | 3050 | 3070 |
KA600-1900 | 1900 | 2050 | 2070 | KA600-3000 | 3000 | 3150 | 3170 |
KA600-2000 | 2000 | 2150 | 2170 | |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
KA-600 encoder, which is specifically designed for large machine tool, features in
large size and good rigidity. Support may be added to any position of the encoder to
enhance the rigidity and stability. The length is 1000~3000mm.
