KA600 KA-600 2200mm Grating SINO Linear Encoder Optical Ruler Glass Scales 5V TTL

Brand Name:	SINO
Model Number:	KA600-1800mm
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

Optical Encoder Glass Linear Scale SINO KA600-2200mm

Application:

Grating Linear Scale Encoder With Digital Readout Systems And M Cover

Usage:

Position Sensor Scaling

Customized Length:

1000mm/1100mm/1200mm/1300mm/1400mm/1500mm

Length:

1600mm/1700mm/1800mm/1900mm/2000mm/2100mm/2200mm

Material:

Aluminum

Function:

EDM/Lathe/Grinding/Boring Machine/Milling Machine

Resolution:

0.5/1/5 μm

Supply Ability:

3000 sets per month

Highlight:

2200mm Grating SINO Linear Encoder

TTL SINO Linear Encoder

Product Description

KA600 KA-600 2200mm Grating Encoder ScaleSINO Linear Encoder Optical Ruler Glass Scales 5V TTL

Package includes:

KA500-2200mm linear glass scale, one piece.

There is a resolution of 0.5/1/5um.

Depending on the requirements of the customers, customized encoder lengths (L0) can be offered.(Length:1000-3000mm)

The SINO KA600 linear scale is renowned for its exceptional accuracy, robustness, and resilience to various environmental elements like dust, fluctuations in temperature, and vibrations. Coordinate measuring machines (CMMs), milling machines, lathes, and other industrial equipment that needs precise positioning or dimensional measurements frequently use it in tandem with them.

Absolute optical angle encoders provide an absolute position value for each angular position within their range, in contrast to incremental encoders, which provide relative position information based on incremental changes in position. This implies that the encoder saves its position data and can deliver it right away upon power-up, even in the event of a power outage or system shutdown.

Model	L0	L1	L2	Model	L0	L1	L2
KA600-1000	1000	1150	1170	KA600-2100	2100	2250	2270
KA600-1100	1100	1250	1270	KA600-2200	2200	2350	2370
KA600-1200	1200	1350	1370	KA600-2300	2300	2450	2470
KA600-1300	1300	1450	1470	KA600-2400	2400	2550	2570
KA600-1400	1400	1550	1570	KA600-2500	2500	2650	2670
KA600-1500	1500	1650	1670	KA600-2600	2600	2750	2770
KA600-1600	1600	1750	1770	KA600-2700	2700	2850	2870
KA600-1700	1700	1850	1870	KA600-2800	2800	2950	2970
KA600-1800	1800	1950	1970	KA600-2900	2900	3050	3070
KA600-1900	1900	2050	2070	KA600-3000	3000	3150	3170
KA600-2000	2000	2150	2170

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

KA-600 encoder, which is specifically designed for large machine tool, features in

large size and good rigidity. Support may be added to any position of the encoder to

enhance the rigidity and stability. The length is 1000~3000mm.

Detail Information:

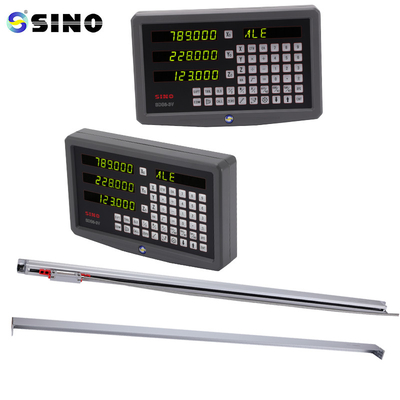

KA600 KA-600 2200mm Grating SINO Linear Encoder Optical Ruler Glass Scales 5V TTL 0

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

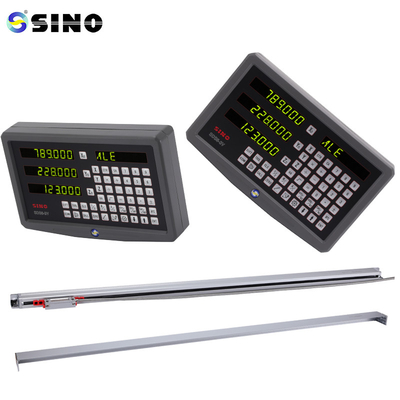

KA600 KA-600 2200mm Grating SINO Linear Encoder Optical Ruler Glass Scales 5V TTL 1
