|Item Name:||DRO Systems Linear Glass Scale SINO KA600 1100-3000mm High-Precision Optical Encoder||Application:||Grating Linear Glass Scale Designed For DRO (Digital Readout) Systems|
|Usage:||Position Sensor Scaling||Customized Length:||1000mm/1100mm/1200mm/1300mm/1400mm/1500mm1600mm/1700mm/1800mm|
|Function:||EDM/Lathe/Grinding/Boring Machine/Milling Machine||Resolution:||0.5/1/5 μm|
|Operating Humidity:||Wide Range||Signal Output:||Voltage|
DRO Systems Linear Glass Scale,
SINO KA600 Linear Glass Scale

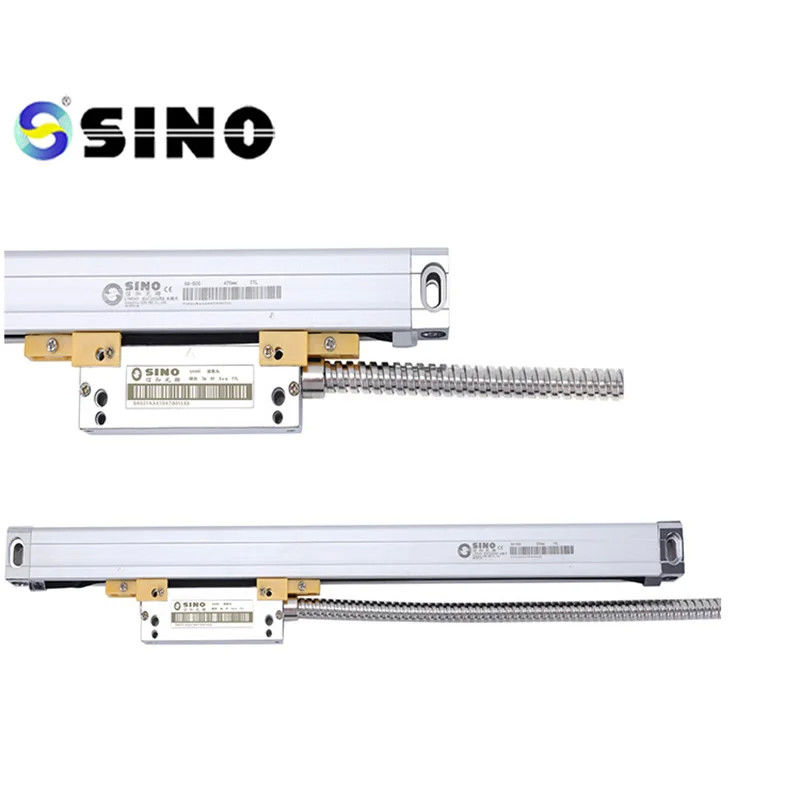

DRO Systems Grating Linear Glass Scale 5um 1um 0.5um SINO KA600-1100mm Optical Encoder
Upgrade your milling machine with the DRO Systems Grating Linear Glass Scale, a high-precision optical encoder designed to enhance measurement accuracy and positioning capabilities. With a length of 1100mm and available resolutions of 5um, 1um, and 0.5um, this linear glass scale offers versatility and fine measurement options.
Grating linear glass scale designed for DRO (Digital Readout) systems
Length of 1100mm for various milling machine applications
Available resolutions of 5um, 1um, and 0.5um for precise measurements
Optical encoder technology enables accurate and reliable positioning
Enhances measurement accuracy and precision in milling operations
Provides multiple resolution options for different application requirements
Enables precise positioning and measurement of linear movements
Compatible with DRO systems for seamless integration
The SINO KA600 linear scale is a precision measuring device commonly used in various industries, including machining, manufacturing, and metrology. It is designed to provide accurate and reliable measurements of linear displacement or position.
The KA600 linear scale utilizes an incremental optical encoding system to determine the position of the scale's reading head. It typically consists of a glass or metal scale and a read head that moves along the scale as the measured object or machine component moves. The read head contains a light source and a photoelectric sensor that detects the graduations or marks on the scale.
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
KA-600 encoder, which is specifically designed for large machine tool, features in
large size and good rigidity. Support may be added to any position of the encoder to
enhance the rigidity and stability. The length is 1000~3000mm.
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
