Product Details:
|
| Item Name: | Metal 2 Axis Digital Readout (DRO) | Usage: | Grinding Machine |
|---|---|---|---|
| System: | SINO 2 Axis Digital Readout (DRO) | Scale Model: | KA-300 Encoder Scale |
| Shell: | Aluminum/Metal | Display Resolution: | 0.1μm, 0.5μm, 1μm, 5μm |
| Voltage: | 100V-240V | Keyword: | Dro For Grinding Machine |
| Warranty: | 1 Year | Color: | Picture |
| High Light: | Metal 2 Axis Digital Readout,2 Axis Digital Readout DRO |
||
RoHS Metal TFT 2 Axis Digital Readout DRO For Grinding Machine
Metal 2 Axis Digital Readout (DRO) Reliable Tool Designed For Grinding Machines
The RoHS Metal TFT 2 Axis Digital Readout (DRO) is a versatile and reliable tool designed for grinding machines. Here are some details about it:
Product: RoHS Metal TFT 2 Axis Digital Readout (DRO)
Application: Grinding machine
Features:
Metal TFT display for clear and easy-to-read measurements
Supports 2-axis measurement, providing accuracy for both longitudinal and crossfeed movements
RoHS compliant, ensuring compliance with environmental regulations
User-friendly interface for intuitive operation
Durable construction to withstand the rigors of grinding applications
Benefits:
Enables precise measurement and control of grinding processes
Improves accuracy and repeatability of grinding operations
Increases productivity by reducing setup time and improving efficiency
Provides real-time measurement feedback for immediate adjustments
RoHS compliance promotes environmentally-friendly practices
The package is special for 2 axis grinding machine requirement.

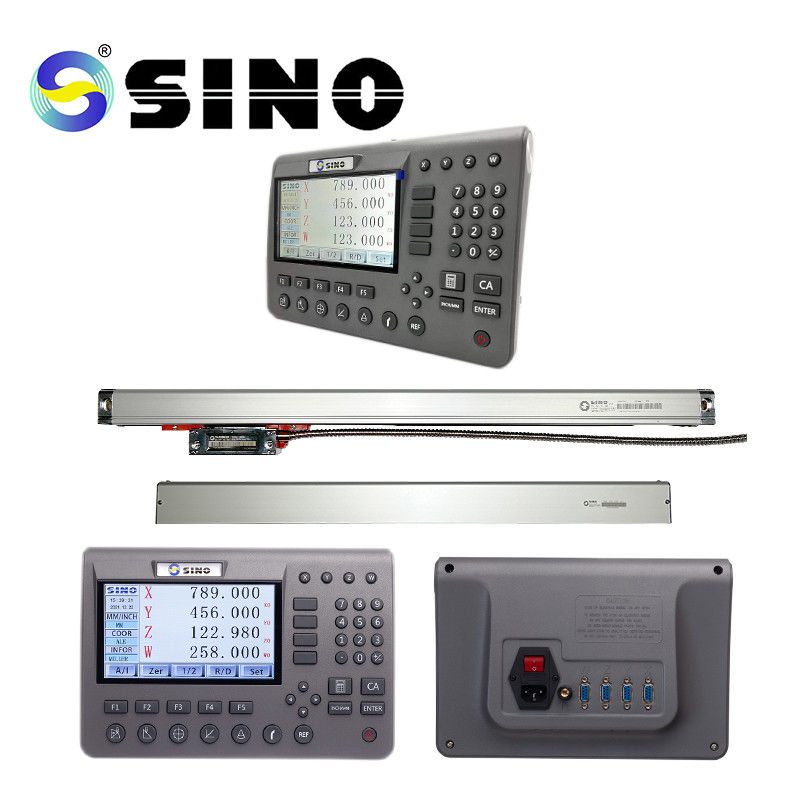

One high quality 4-axis TFT display DRO SDS 200 with two high precision 0.001 mm linear scales KA-300.
Usually, the resolution should be 0.001 mm for grinding machine.
And the 0.001 mm scales use yellow lips that more smoothly to upgrade the accuracy.
Package list:
| Item name | Metal LCD Grinding Machine DRO kit |
| Digital Readout (DRO) | SDS 200 |
| Linear scale for axis X | KA-300: 70-1020mm |
| Linear scale for axis Y | KA-300: 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type D |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 set) |
| Others | Cable / Screws / Manual |
| Bracket for Grinding | 1 set (optioned, not standard) |
Functions for grinding machine:
Bracket for Grinding:
Special for the cylinder type grinding header, so that's not standard accessory.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
