|Item Name:||SINO SDS200S 3 Axis LCD Full Touch Screen Digital Readout Kits (DRO)||Usage:||Milling Machine Griding Machine EDM For Precision Measurement|
|System:||Small Size Lathe Boring Machine Readout SDS200s||Scale Model:||Grating Linear Rulers: KA-600, KA-300, KA-500|
|Voltage:||Readout Power: AC 100V-240V||Signal:||Linear Scale: TTL / RS422|
|Resolution:||Linear Rulers: 0.005mm/0.001mm||Meas. Travel:||Linear Rulers:1000-3000mm, 70-1020mm|
|Application:||Used For Position Sensor||Warranty:||12 Months|
SINO SDS200S Digital Readout Kit,
3 Axis Digital Readout Kit,
Full Touch Screen Digital Readout Kit
SINO SDS200S 3 Axis LCD Full Touch Screen Digital Readout DRO Grating Ruler Rotary Encoder

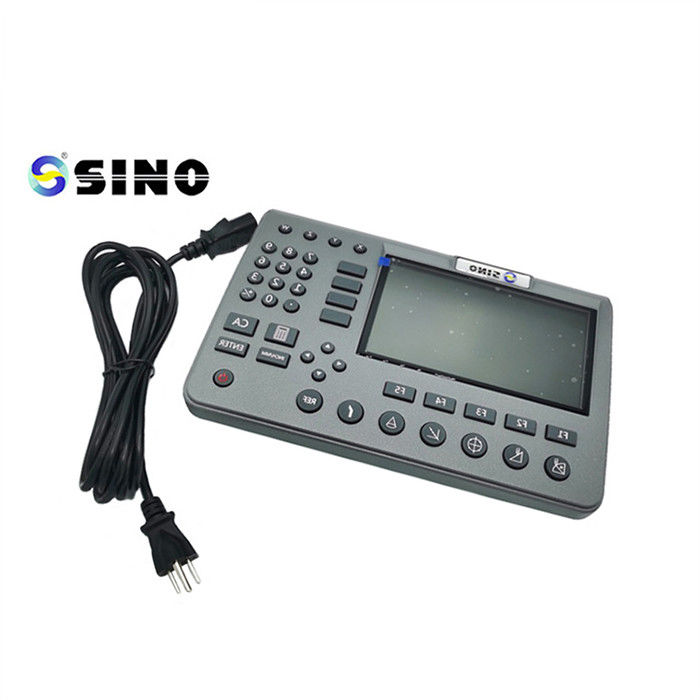

SINO SDS200S 3 Axis LCD Full Touch Screen Digital Readout Kits (DRO) For Precision Measurement
The SINO SDS200S 3 Axis LCD Full Touch Screen Digital Readout Kits (DRO) is a comprehensive and advanced tool designed for precision measurement in various applications. Here are some details about it:
Product: SINO SDS200S 3 Axis LCD Full Touch Screen Digital Readout Kits (DRO)
LCD Full Touch Screen display for easy and intuitive operation
Supports 3-axis measurement, providing accurate readings for multiple axes
Compatible with grating ruler and rotary encoder measurement systems
Offers a wide range of functions, including linear compensation, error compensation, and backlash compensation
Provides real-time measurement and feedback for precise control and adjustments
Allows for easy setup and configuration through the touch screen interface
Durable construction ensures reliability and longevity
Enables accurate and precise measurement in various applications
Improves productivity and efficiency by reducing measurement errors and setup time
Versatile compatibility with grating ruler and rotary encoder measurement systems
Real-time measurement feedback for immediate adjustments and control
Intuitive touch screen interface for user-friendly operation
The DRO SDS200S is a Multifunctional 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function. The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.
|Item name||3 axis mini size metal LCD milling machine Readout kit|
|Digital Readout (DRO)||SDS200|
|Linear scale for axis X||1000-3000mm|
|Linear scale for axis Y||70-1020mm|
|Rack for DRO||L400|
|Protection cover for X scale||Type M|
|Protection cover for Y scale||Type D|
|Bracket for scales||T-bracket (1 or 2 sets, depend on the size)|
|Others||Cable / Screws / Manual|
-Support 5 languages, including Chinese, German, French, English, Spanish
-Touch Screen, simple to use
-Simple system, easy to operate
-Big LCD display, clearly show
Specifications of SINO SDS200S digital readout systems and linear scale encoder
The SDS200 offers a high performance universal display console with Milling, Lathe and Grinding functions.
This 4 axis model allow up to 4 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.
Durable front panel membrane with tactile switches and robust die cast housing.
Large easy to read LCD display.
Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.
All linear scales were tested before delivery. Here is a sample of a scale's test report.
