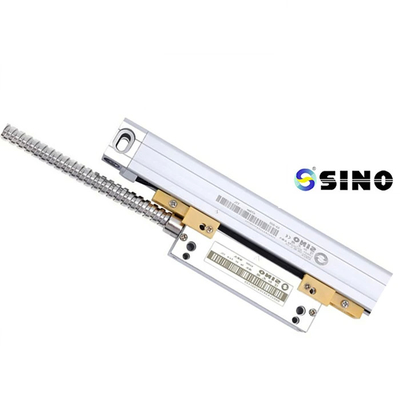

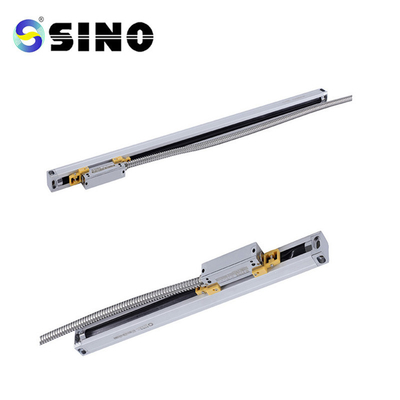

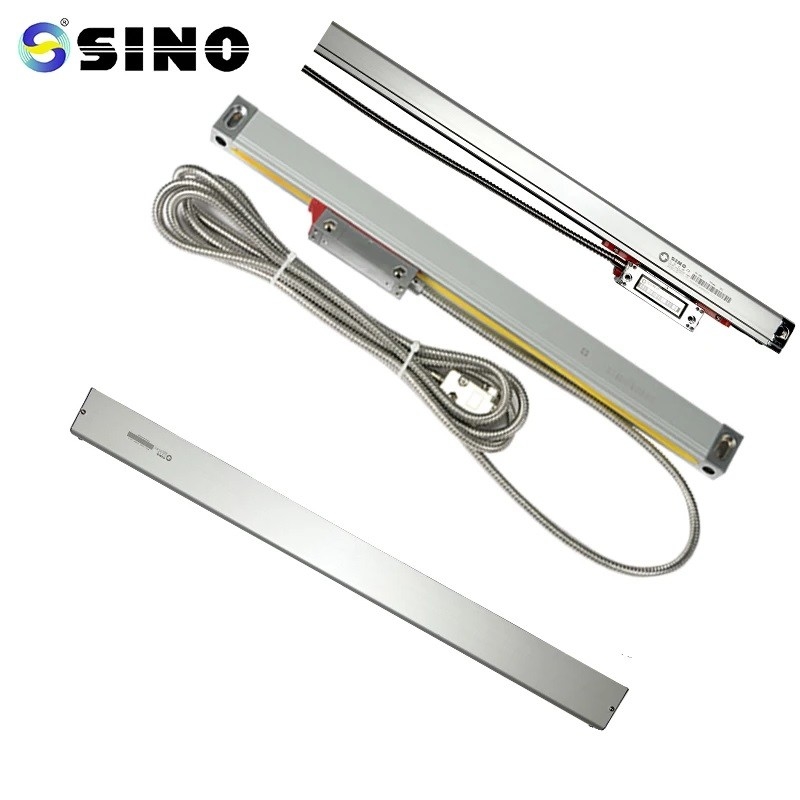

SINO KA200-60mm Glass Linear Encoder Scale For Precise Measurement

Miniaturethin Ruler Linear Scale SINO KA200-60mm Glass Linear Encoder Scale Mini SDS200 DRO​

SINO KA200-60mm Ruler Glass Linear Encoder Scale For Precise Measurement Applications

The SINO KA200-60mm Ruler is a glass linear encoder scale used for precise measurement in various applications. It features a 60mm length and is made of high-quality glass material. The encoder scale is designed to provide accurate positioning and feedback in machining, manufacturing, and other industrial processes.

The KA200-60mm Ruler is known for its high resolution, capable of delivering precise measurements down to micrometer-level accuracy. It offers excellent repeatability and reliability, ensuring consistent and dependable performance over time.

This encoder scale is compatible with a wide range of motion control systems and can be easily integrated into existing setups. It utilizes advanced optical encoding technology, allowing for fast and accurate position detection. The glass construction provides durability and resistance to environmental factors such as dust, moisture, and temperature variations.

With its compact design and compatibility with various machines and systems, the SINO KA200-60mm Ruler Glass Linear Encoder Scale is an excellent choice for industries that require precise and reliable measurement solutions.

Features:

Glass linear encoder scale with a length of 60mm
Compact and miniature design for space-constrained applications
High-precision measurement with fine resolution
Durable construction for reliability and longevity
Compatible with the SDS200 DRO system
The KA200-60mm Ruler is often used as a linear measurement component within the SDS200 DRO system. The SDS200 DRO system utilizes the ruler's measurement data to provide accurate digital readout information on the display screen.

Package includes:

Short Linear Glass Scale, 1 piece, KA200-60mm

The internal and external structure of KA-500 were optimized to develop the mini-encoder KA-200, which is smaller than KA-500. It is suited for machinery when space is at a premium and installation is restricted. The size is 30-360mm.

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
