|Name:||KA300-170mm SDS2-3VA Screen DRO Test Instrument Optical Encoder||Number Of Axis:||3 Axis LCD Digital Readout Systems|
|Color:||Grey||Signal:||Digital Readout: TTL / RS422|
|Voltage:||Digital Readout: AC100-240V / 50-60Hz||Suitable For:||Grinding Machine, EDM Machine|
3 Axis LCD Digital Readout,
SINO SDS2-3VA LCD Digital Readout,
3 Pieces LCD Digital Readout
SINO SDS2-3VA 3 Axis LCD Digital Readout And 3 Pieces KA-300 Glass Linear Scale Encoder
An advanced electronic measurement tool mostly utilized in metalworking and machining applications is the SDS2-3VA digital readout system. It is intended to give exact measurements of angles, linear distances, and other dimensions on machine tools including grinders, lathes, and milling machines.
SDS2-3VA Screen DRO Features:
Coordinate Systems: The digital readout system supports multiple coordinate systems, such as absolute and incremental modes. This enables the user to switch between different reference points and measurement modes as needed.
Preset Functions: The SDS2-3VA often includes preset functions that allow the user to store and recall specific measurement values. This feature is particularly useful for repetitive machining tasks where precise measurements need to be repeated.
Error Compensation: The system may offer error compensation features to account for machine tool inaccuracies or measurement errors. By calibrating the system and applying compensation values, it can enhance the overall accuracy of measurements.
The SDS2-3VA model
Voltage input: AC80-240V
Signal input: TTL
Cover made of plastic
Plug: US, UK, EU, AU, etc.
Specifications of SINO SDS2-3VA digital readout system + linear scale encoder
A high-performance universal display console with milling, lathe, and grinding capabilities is provided by the SDS2-3VA.
This three-axis type supports the connection of up to three linear encoders. To combine axes or modify the input to fit equipment made by other manufacturers, there are more interfaces available. Please refer to the compatibility guide for encoders below.
strong die cast casing with a front panel membrane that is both haptic and long-lasting.
large, easily readable LCD screen.
PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are among the features.
|1 PC||3 Axis LED digital readout SDS2-3Va|
|1 PC||Protection cover|
|1 PC||Instruction Manual (English)|

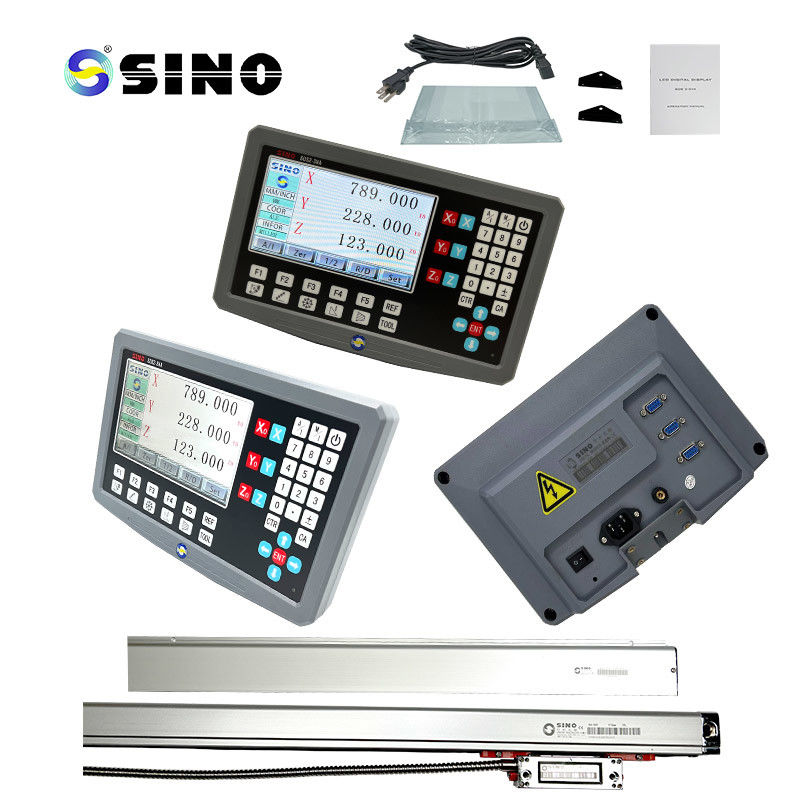

Product image /photos:
The rack in the picture is optioned, not standard product.
