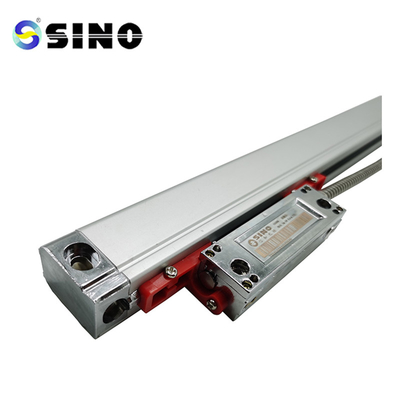

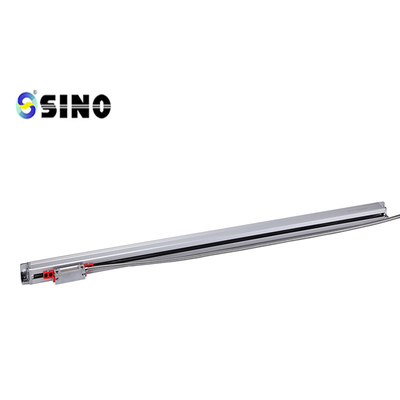

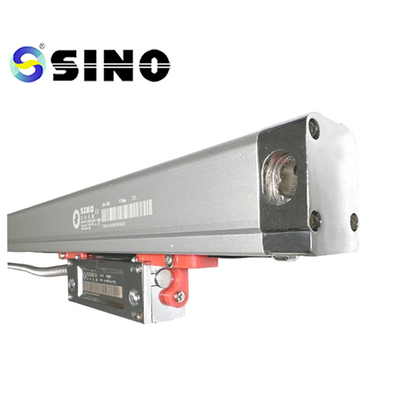

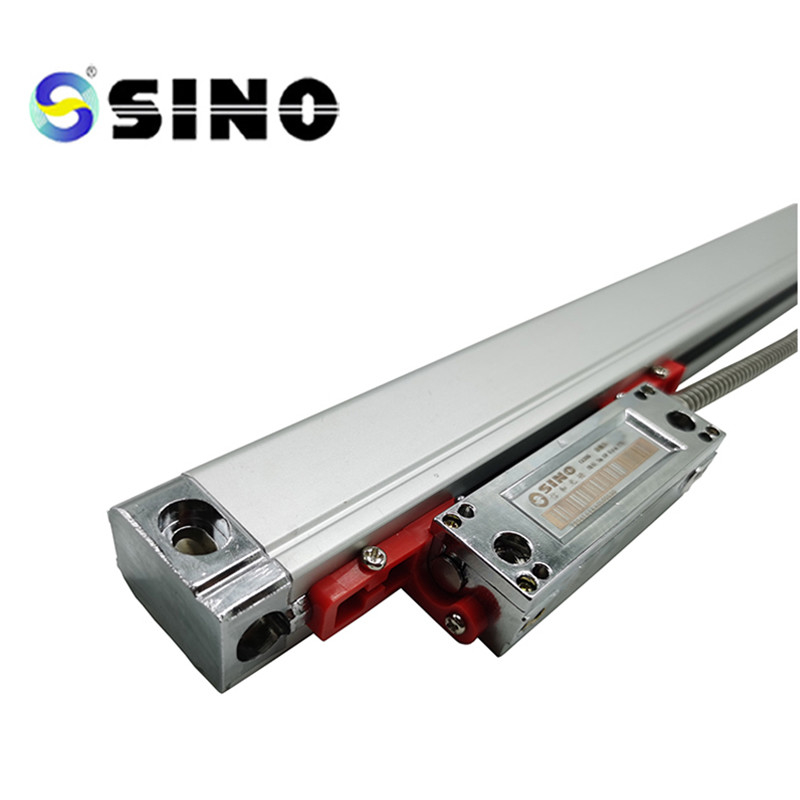

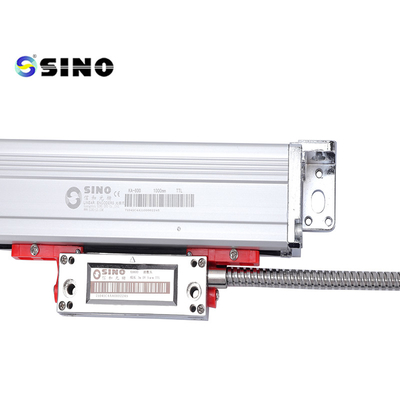

SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines

SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines
SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines

Large Image :  SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: KA500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per month

SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines

Description
Item Name: KA500 Digital Readout Optical Encoder Application: Small Linear Scale KA500
Usage: Small Lathe Drilling Machine Drilling Machine Milling Machine Customized Length: 70mm/120mm/170mm/220mm
Length: 320mm/370mm/420mm/470mm Material: Aluminum
Function: EDM/Lathe/Grinding/Boring Machine Resolution: 0.5/1/5 μm
High Light:

Compact Digital Readout Encoder

,

SINO KA500 Digital Readout Encoder

Small Linear Scale KA500 Digital Readout Suitable for Small Lathe Drilling Machine Drilling Machine Milling Machine





The Small Linear Scale KA500 Digital Readout Optical Encoder is an advanced and precision measuring tool designed specifically for small lathe and drilling machines. With its compact size and high accuracy, this digital readout encoder provides accurate and reliable measurements, ensuring precise machining operations.



Features:



Compact Design: The Small Linear Scale KA500 is specifically designed for small lathe and drilling machines, offering a compact size that fits seamlessly into limited workspace environments.

Digital Readout: The built-in digital readout provides clear and easy-to-read measurements, allowing users to monitor and control machining processes with precision.

Optical Encoder Technology: Utilizing state-of-the-art optical encoder technology, this device ensures accurate and consistent measurements, even in challenging working conditions.

High Accuracy: The KA500 offers high accuracy measurements, enabling users to achieve precise machining results, reducing material waste, and enhancing overall productivity.

Easy Installation: The encoder is designed for hassle-free installation, allowing users to quickly set it up on their small lathe or drilling machine without any complications.



Functionality:


The Small Linear Scale KA500 Digital Readout Optical Encoder enables users to accurately measure linear displacements on small lathe and drilling machines. It provides real-time measurements and enables operators to monitor the machining process with exceptional precision. The optical encoder technology ensures reliable and accurate measurements, contributing to improved machining results and increased productivity.

Usage:
The KA500 Digital Readout Optical Encoder is primarily used in small lathe and drilling machines. It is ideal for applications where precise measurement of linear displacements is required, such as metalworking, woodworking, jewelry making, and small-scale manufacturing processes.



Applicable Scenarios:



Small Machine Workshops: The KA500 encoder is suitable for small machine workshops dealing with lathe and drilling operations. It enhances the accuracy and precision of machining processes, resulting in high-quality output.

Small-Scale Manufacturing: Industries engaged in small-scale manufacturing processes can integrate the KA500 to their small lathe and drilling machines for accurate measurements, enhancing the overall production quality and efficiency.



Package includes:



Glass linear scale, 1 piece, KA500-70mm



0.5/1/5 m of resolution is available.

Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)



Model L0 L1 L2 Model L0 L1 L2
KA500-70 70 172 182 KA500-320 320 422 432
KA500-120 120 222 232 KA500-370 370 472 482
KA500-170 170 272 282 KA500-420 420 522 532
KA500-220 220 322 332 KA500-470 470 572 582
KA500-270 270 372 382



L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension



Operating Guideline



Reading the General Description, Safety Considerations, and

everything in Chapter 1 3.

2. In addition to the General Description, Safety Considerations, and all the data in

The installation, testing, and repair professionals must rigorously adhere to Chapters 1 through 3.

understand every paragraph in Chapters 4-5.

3. These operating guidelines only apply to SINO's KA series of integrated circuits.

it is the linear encoder.

Please read the safety advice listed below for further information. It includes crucial information regarding

Make safe usage of your linear encoder.



Detail Information:



SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines 0





All linear scales will be tested before delivery. Here is a sample of a scale's testing report.



SINO KA500 Compact Digital Readout Encoder For Small Lathe And Drilling Machines 1
