|Item Name:||Optical Encoder Glass Linear Scale||Application:||Digital Readout System Glass Linear Encoder|
|Usage:||Position Sensor Scaling||Customized Length:||70mm/120mm/170mm/220/270/320/370mm|
|Function:||EDM/Lathe/Grinding/Boring Machine||Resolution:||0.5/1/5 μm|
Glass Linear Scale Ka500,
470mm Length Glass Linear Scale,
5um Resolution Glass Linear Encoder

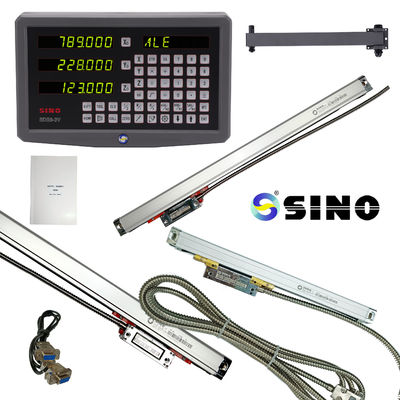

SINO KA500 Optical Encoder Glass Linear Scale CNC Linear Encoder Scale for Digital Readout
Optical Encoder Glass Linear Scale Ka500, 0.5/1/5um Resolution, 70-470mm Length For Digital Readout
The SINO KA500 Optical Encoder Glass Linear Scale is a CNC linear encoder scale designed for use with digital readout (DRO) systems. It provides accurate and reliable measurement feedback for CNC machines, ensuring precise positioning and control during machining operations. The optical encoder technology ensures high resolution and durability, making it suitable for demanding industrial applications.
Optical Encoder Technology: The KA500 linear scale utilizes optical encoder technology, which allows for high-precision measurement with excellent resolution. The optical system enables accurate position detection and minimizes errors caused by environmental factors such as vibration and temperature changes.
Glass Linear Scale: The linear scale is made of high-quality glass, ensuring durability and stability in harsh machining environments. The glass construction provides resistance to mechanical wear and corrosion, extending the scale's lifespan.
CNC Compatibility: The KA500 linear scale is compatible with CNC machines, making it suitable for use in various manufacturing and machining applications. It can be easily integrated into the control system of CNC machines for precise positioning and motion control.
Easy Installation: The linear scale is designed for easy installation, with mounting brackets and accessories included in the package. This simplifies the setup process and allows for quick integration into existing CNC systems.
Long Length Options: The KA500 linear scale is available in different lengths to accommodate various machine sizes and travel distances. This flexibility allows users to select the appropriate scale length based on their specific machine requirements.
The SINO KA500 Optical Encoder Glass Linear Scale provides accurate and real-time position feedback for CNC machines. It allows for precise control of machine movements, enabling operators to achieve accurate machining results and maintain tight tolerances. The high-resolution measurement capability of the linear scale ensures excellent accuracy, enhancing the overall performance of CNC systems.
The KA500 linear scale is widely used in CNC machining applications across industries such as metalworking, woodworking, and manufacturing. It is suitable for applications that require precise and reliable position feedback, including milling, turning, grinding, and other CNC operations.
The KA-500 is a little encoder that was created especially for machine tools with restricted installation and work areas. Customers with position-specific needs can have their needs met. The size is 70 mm by 470 mm.
Glass linear scale, 1 piece, KA500-470mm
0.5/1/5 m of resolution is available.
Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
The user is required to read the General Description, Safety Considerations, and
all of Chapter 1's contents 3.
2. Aside from the General Description, Safety Considerations, and the entirety of the information in
The technicians for installation, testing, and repair must carefully follow Chapters 1 through 3.
comprehend every section of Chapters 4–5.
3. Only SINO's KA series of integrated circuits are covered by these operating instructions.
the linear encoder.
Please take a moment to read the safety considerations below. It contains vital details about
use of your linear encoder safely.
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
