IP67 3 Axis Digital Readout SINO SDS2-3VA Linear Scale Encoder For Milling Machine

3 Axis Digital Readout DRO SINO SDS2-3VA Linear Scale Encoder for Milling Machine Lathe Machine​

Key Features:

1 3-Axis Capability: Monitor and control three axes simultaneously for precise movements in three-dimensional space.
2 Linear Scale Encoders: Utilizes precise linear scale encoders to provide accurate position feedback in real-time.
3 Digital Display: Clear and easy-to-read display shows real-time measurements, eliminating manual errors.
4 User-Friendly Interface: Intuitive interface for easy setup and customization according to your machining needs.
5 Versatile Applications: Suitable for various milling machines and lathe machines, enhancing accuracy and efficiency.

Usage:

Mount the linear scale encoders on the machine axes, connect them to the DRO unit, and power it on. The digital display will show real-time measurements for each axis, enabling precise control over machine movements.

Suitable Scenarios: Perfect for precision machining in manufacturing, metalworking, and woodworking industries, providing accurate measurements and improving productivity.

The graphics function is made easier to utilize by these characteristics. It is the first facility in China to use a DRO system with a 16- and 32-bit calculator, and it has one of the highest input frequencies in the world, reaching up to 5 MHZ with A/B.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (fits milling machines and spark testers)

Involute chamber machining function (fits milling machines)

Bevel and angular surface finishing (unique to milling machines)

N3 function (unique to milling machines)

Diagonal boring using a milling machine

R-arc function (unique to milling machines)

Tape measure function (for use with a lathe only)

200-piece set of tools (with a lathe included)

Function that prevents dithering (applicable to grinding machines)

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

The SDS2-3VA is a high-performance universal display console that may be used for turning, grinding, and milling.

Up to three linear encoders can be connected using this three-axis kind. Extra connectors can be utilized to swap out the input or combine axes to suit the requirements of equipment built by various manufacturers. Please see the encoder compatibility guide below.

robust die-cast housing, a membrane front panel with tactile controls.

a large, easily readable LCD screen.

Among the features are PCD, line of holes, radius/diameter display, 200 zero memory, and tool offsets.

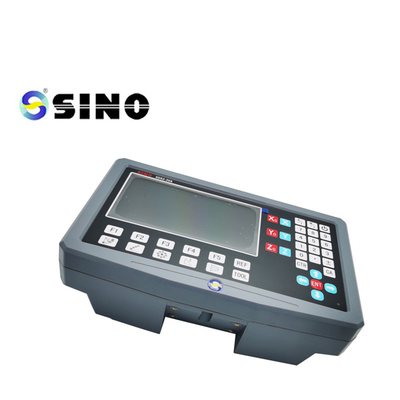

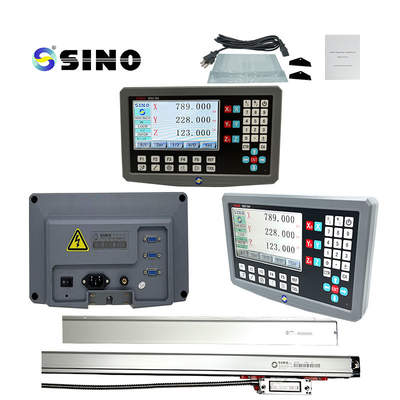

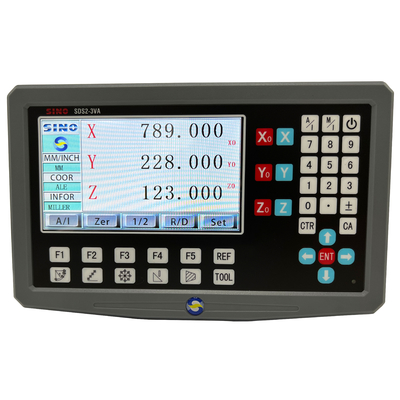

Product image /photos:

The rack in the picture is optioned, not standard product.
