SINO SDS2-3VA 3 Axis Digital Readout Meter KA300 Glass Linear Ruler TTL RS422 Signal

SINO SDS2-3VA 3 Axis Digital Readout Meter KA300 Glass Linear Ruler TTL/RS422 Signal​

These features make the graphics function easier to use. It is the first plant in China to use a 16- and 32-bit calculator in a DRO system, and the input frequency of the DRO system, up to 5MHZ with A/B, is among the highest in the world.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (applicable to spark testers and milling machines)

Function for machining involute chambers (applicable to milling machines)

Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)

Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)

Function that prevents dithering (applicable to grinding machines)

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions: The SDS2-3VA often includes preset functions that allow the user to store and recall specific measurement values. This feature is particularly useful for repetitive machining tasks where precise measurements need to be repeated.

Error Compensation: The system may offer error compensation features to account for machine tool inaccuracies or measurement errors. By calibrating the system and applying compensation values, it can enhance the overall accuracy of measurements.

Data Interface: Some versions of the SDS2-3VA digital readout system may have data interfaces, such as RS-232 or USB, that allow for data transfer and communication with external devices. This can enable connectivity with computer systems or data logging for quality control purposes.

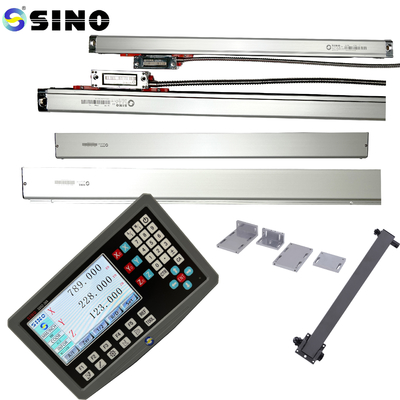

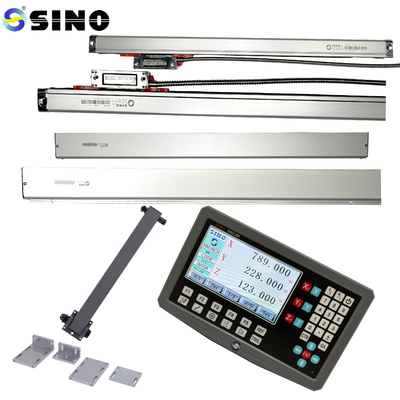

Product image /photos:

The rack in the picture is optioned, not standard product.
