3 Pieces KA-300-970mm Glass Linear Scale SINO SDS2-3VA 3 Axis LCD Digital Readout

Brand Name:	SINO
Model Number:	SDS2-3VA, KA300, Ka500
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SINO SDS2-3VA 3 Axis Screen Digital Readout Scale Ruler

Number Of Axis:

3 Axis Digital Readout Kits Counter

Color:

Grey

Signal:

Digital Readout System: TTL / RS422

Voltage:

Digital Readout Kits: AC100-240V / 50-60Hz

Suitable For:

Milling Machine, Grinding Machine, EDM Machine

Resolution:

1um,5um,0.5um

Material:

Metal

Supply Ability:

1000 pcs per month

Highlight:

3 Pieces Glass Linear Scale

SINO SDS2-3VA Glass Linear Scale

Product Description

3 Pieces KA-300-970mm Glass Linear Scale SINO SDS2-3VA 3 Axis LCD Digital Readout

These features make the graphics function easier to use. It is the first factory in China to use a 16- and 32-bit calculator in a DRO system, and it has an input frequency of up to 5 MHZ with A/B, making it the most advanced in the world.

SDS2-3VA DRO System Features:

Machining Path Verification: The digital readout system can be used to verify the machining path and ensure that it matches the intended design. By comparing the actual tool position with the programmed path, it helps detect any deviations or errors in the machining process.

Measurement Repeatability: With its preset functions, the SDS2-3VA allows for the storage and recall of specific measurement values. This is particularly useful for repetitive machining tasks, where the system can quickly and accurately reproduce previously measured dimensions, improving efficiency and consistency.

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder

The SDS2-3VA offers a high performance universal display console with Milling, Lathe and Grinding functions.

This 3 axis model allow up to 3 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.

Durable front panel membrane with tactile switches and robust die cast housing.

Large easy to read LCD display.

Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.

Packaging List :

1 PC	3 Axis LED digital readout SDS2-3Va
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

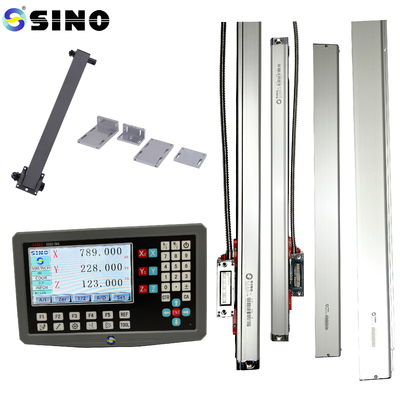

3 Pieces KA-300-970mm Glass Linear Scale SINO SDS2-3VA 3 Axis LCD Digital Readout 0

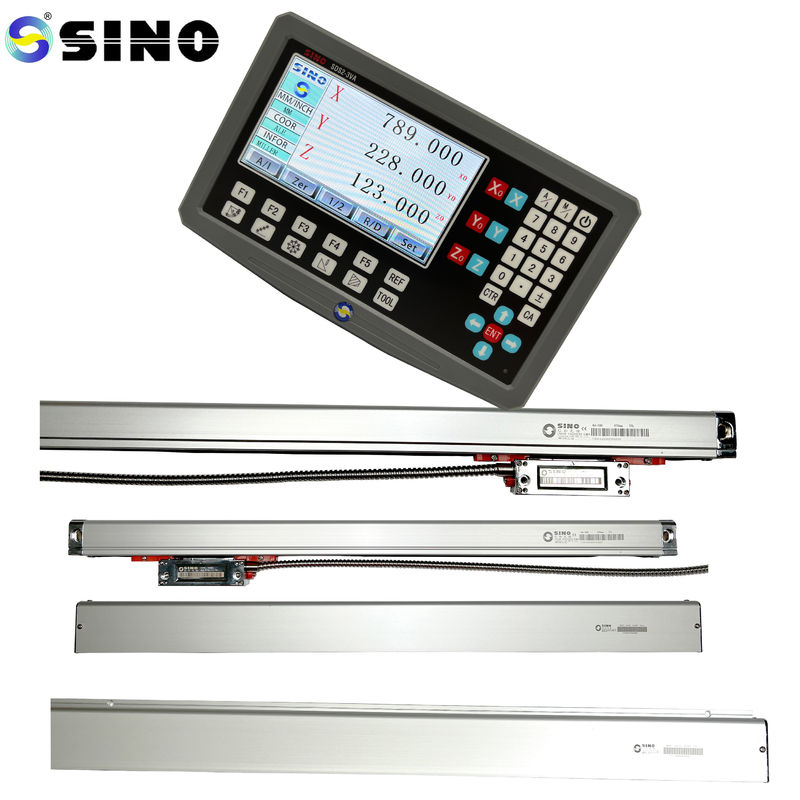

3 Pieces KA-300-970mm Glass Linear Scale SINO SDS2-3VA 3 Axis LCD Digital Readout 1

The rack in the picture is optioned, not standard product.

3 Pieces KA-300-970mm Glass Linear Scale SINO SDS2-3VA 3 Axis LCD Digital Readout 2
