Product Details:
|
Name: | SDS6-2V Tool Counter Optical Encoder Grating Ruler Linear | Number Of Axis: | Ka500 Ka300 Ruler Scale 3 Axis DRO Measuring Machine |
---|---|---|---|
Color: | Grey | Signal: | Digital Readout: TTL / RS422 |
Voltage: | Digital Readout: AC100-240V / 50-60Hz | Suitable For: | Milling Machine, Boring Machine |
Resolution: | 1um,5um,0.5um | Material: | Metal |
Highlight: | SDS2-3VA Optical Encoder Grating Ruler,Lathe Mill Optical Encoder Grating Ruler |
Lathe Mill SDS2-3VA Tool Counter Optical Encoder Grating Ruler Linear Absolute Encoder
Advantages
-Support five languages: Chinese, English, Spanish, German, and French
-Easy to use, basic system
- Large LCD screen, excellent clarity
-The DRO compatible with all linear scales manufactured in China
SDS2-3VA LCD DRO Features:
Measurement Repeatability: With its preset functions, the SDS2-3VA allows for the storage and recall of specific measurement values. This is particularly useful for repetitive machining tasks, where the system can quickly and accurately reproduce previously measured dimensions, improving efficiency and consistency.
Positioning and Dimensional Control: The SDS2-3VA can be used to accurately position the cutting tool or workpiece on a milling machine, lathe, or other machine tools. It provides real-time measurements of the tool's position along the X, Y, and Z axes, ensuring precise alignment and dimensional control.
Mainly digital display Functions
Power down c/w Interrupt settings memory & Console sleep mode
Linear compensation, compensate linear reading error
Metric & Imperial display Absolute & Incremental co-ordinates
Linear & segmented compensation program to match scales to console
Advanced calculator including trigonometric functions
200 position zero memory & 200 Tool zero offset positions
1 PC | 3 Axis LED digital readout SDS2-3Va |
1 PC | Protection cover |
1 PC | Instruction Manual (English) |
1 PC | Cable |

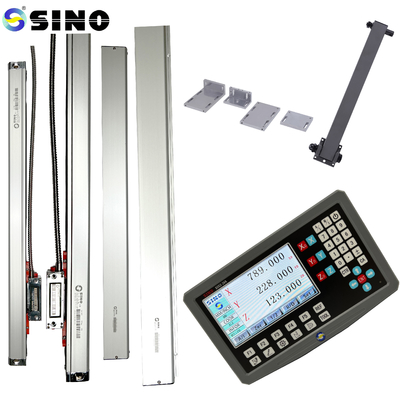

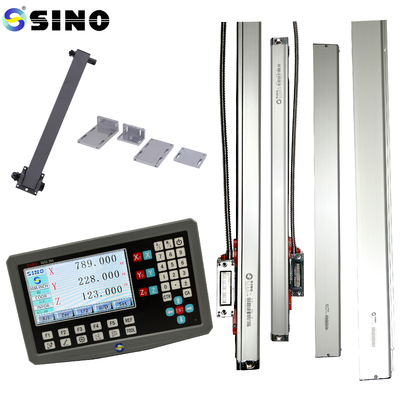

Product image /photos:
The rack in the picture is optioned, not standard product.
