|3 Axis Digital Readout System With LCD DRO SDS2-3VA For Lathe Drilling Boring Milling Encoder
|Number Of Axis:
|3 Linear Scales Encoder 3 Axis DRO System
|Digital Readout: TTL / RS422
|Digital Readout: AC100-240V / 50-60Hz
|Grinding Machine, EDM Machine
DRO SDS2-3VA 3 Axis Digital Readout,
LCD 3 Axis Digital Readout
Milling Lathe LCD DRO Digital Readout SDS2-3VA 3 Axis KA300-70mm Linear Scale Optical Encoder
Digital Readout Unit: The SDS2-3VA digital readout unit is a high-quality device that displays accurate numerical readings of the machine axes. It offers advanced features such as metric and inch conversion, zero setting, and data storage capability.
KA300-70mm Linear Scale Optical Encoder: The system includes a KA300-70mm linear scale optical encoder for each axis. These optical encoders use a high-precision encoding principle to provide precise position feedback.
LCD Display: The digital readout unit features an LCD display that shows the measured values clearly, ensuring easy reading and operation.
Easy Installation: The system is designed for ease of installation, with all necessary mounting brackets, cables, and accessories included.
Versatile Application: The digital readout system is suitable for a wide range of milling and lathe machines, enhancing precision and accuracy in machining operations.
-Support the following five languages: French, German, Spanish, English, and Chinese.
-Basic, user-friendly system
- Large, highly clear LCD screen
-The DRO is compatible with all Chinese-made linear scales.
SDS2-3VA LCD DRO Features:
Frequently found in lathe, drilling, boring, and milling equipment, the LCD display is compatible with all Chinese optical linear glass scales.
It is very helpful for users of milling machines and lathes from other countries since it can switch between Chinese and English on a single display.
The model SDS2-3VA
Input voltage: AC80-240V
TTL signal input
Made of plastic cover
Plug: AU, EU, US, UK, and so forth.
Specifications of SINO SDS2-3VA digital readout system + linear scale encoder
The SDS2-3VA is a high-performance universal display console that may be used for milling, latheing, and grinding.
Up to three linear encoders can be connected to this three-axis kind. There are other interfaces available to combine axes or alter the input to fit equipment manufactured by other manufacturers. Please see the encoder compatibility guide below.
robust die cast housing with a long-lasting and haptic front panel membrane.
big LCD panel with good readability.
Among the features are PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets.
|3 Axis LED digital readout SDS2-3Va
|Instruction Manual (English)

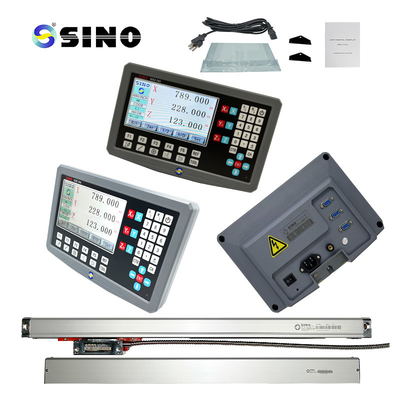

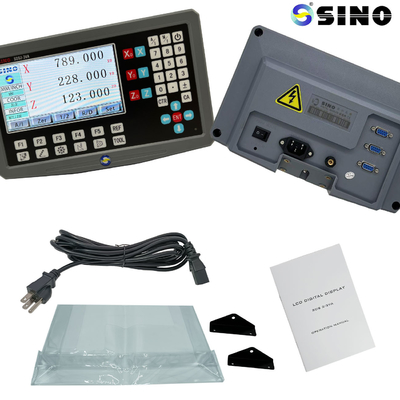

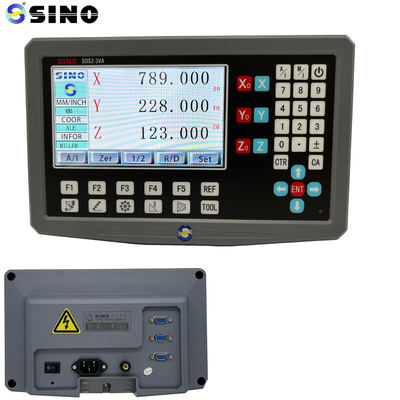

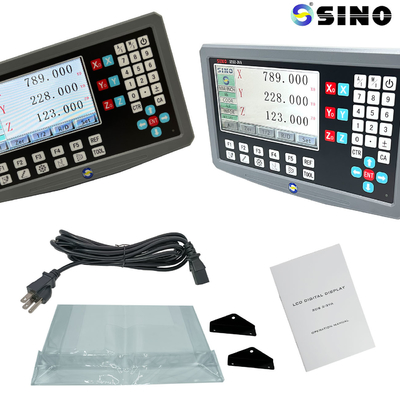

Product image /photos:
The rack in the picture is optioned, not standard product.
