SDS2-3VA LCD Dro Digital Readout Kit Display TTL Signal 9 Pins For Lathe Mill CNC Machines

Brand Name:	SINO
Model Number:	SDS2-3VA, KA300, Ka500, ka600
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SDS2-3VA LCD Dro Digital Readout Kit

Number Of Axis:

Grating Linear Scale 3 Axis Screen Digital Readout Counter

Color:

Grey

Signal:

TTL/RS422 Digital Readout System

Voltage:

Digital Readout Kits: AC100-240V / 50-60Hz

Suitable For:

Milling Machine, Grinding Machine, EDM Machine

Resolution:

1um,5um,0.5um

Material:

Metal

Supply Ability:

1000 pcs per month

Highlight:

SDS2-3VA Digital Readout Kit

LCD Dro Digital Readout Kit

Product Description

SDS2-3VA LCD Dro Digital Readout Kit Original Display TTL Signal 9 Pins For Lathe Mill CNC Machines

The graphics function is made easier to utilize by these characteristics. It is the first facility in China to use a DRO system with a 16- and 32-bit calculator, and it has one of the highest input frequencies in the world, reaching up to 5 MHZ with A/B.

SDS2-3VA DRO System Features:

Axial cutting and machining: The SDS2-3VA can be used for axial cutting and machining operations such as turning and milling. Operators can use a digital readout system to measure the position of the workpiece or tool and make adjustments based on the desired depth of cut or machining size.

Coordinate conversion: The system supports coordinate conversion, allowing users to switch between different coordinate systems. This is useful for tasks that require measurement and machining in different workpiece coordinate systems.

Zero setting: SDS2-3VA digital readout systems usually have a zero setting function that can set the current position as a reference point. This allows the operator to make relative measurements at the zero position and easily calculate the displacement relative to the reference point.

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder

Coordinate rotation and mirroring: For some tasks, it may be necessary to measure and process at different angles or mirror directions. SDS2-3VA digital readout systems typically feature coordinate rotation and mirroring functions, making it easy to adjust the coordinate system to match the desired operation.

Packaging List :

1 PC	3 Axis LED digital readout SDS2-3Va
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

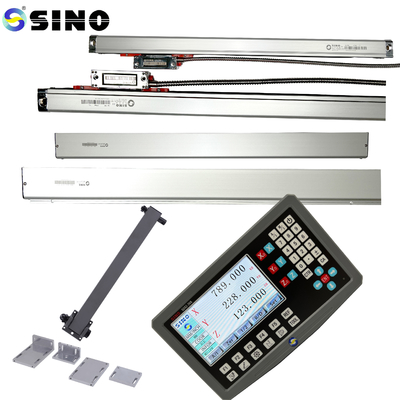

SDS2-3VA LCD Dro Digital Readout Kit Display TTL Signal 9 Pins For Lathe Mill CNC Machines 0

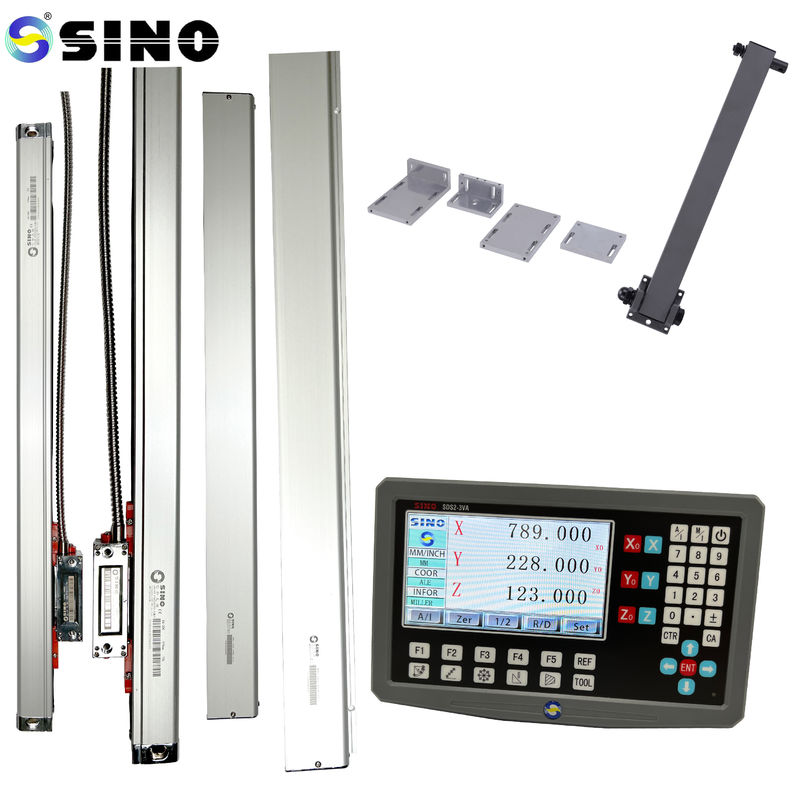

SDS2-3VA LCD Dro Digital Readout Kit Display TTL Signal 9 Pins For Lathe Mill CNC Machines 1

The rack in the picture is optioned, not standard product.

SDS2-3VA LCD Dro Digital Readout Kit Display TTL Signal 9 Pins For Lathe Mill CNC Machines 2
