Product Details:
|
Name: | 3 Axis LCD DRO Digital Readout AC220V/110V | Number Of Axis: | 50-1000mm Linear Scale Encoder Grating Ruler |
---|---|---|---|
Color: | Grey | Signal: | Digital Readout System: TTL / RS422 |
Voltage: | Lcd Digital Readout Kits: AC100-240V / 50-60Hz | Suitable For: | Milling Machine, Boring Machine, Lathe |
Resolution: | 1um,5um,0.5um | Material: | Metal |
High Light: | 1020m 3 Axis Digital Readout,3 Axis Digital Readout DRO |
Lathe Milling 3 Axis LCD DRO Digital Readout AC220V/110V 50-1000mm Linear Scale Encoder Grating Ruler
The SDS2-3VA digital readout system is an advanced electronic measurement device used primarily in machining and metalworking applications. It is designed to provide accurate and precise measurements of linear distances, angles, and other dimensions on machine tools such as milling machines, lathes, and grinders.
SDS2-3VA DRO Digital Readout Systems Functions:
PCD circumferential division (applicable to spark testers and milling machines)
Function for machining involute chambers (applicable to milling machines)
Bevel machining and angular surface processing (milling machine-specific)
N3 function (milling machine-specific)
Using a milling machine, diagonal boring
R-arc function (milling machine-specific)
Function for measuring taper (Lathe only)
200-tool collection (lathe applicable)
Function that prevents dithering (applicable to grinding machines)
SINO SDS2-3VA digital readout system specifications plus a glass linear scale
Digital Display: The system features a digital display unit that provides clear and easy-to-read measurements. It typically uses LCD or LED technology to present the measurement values.
Linear and Angular Measurements: The SDS2-3VA can measure linear distances along the X, Y, and Z axes of a machine tool. It can also measure angular positions, allowing for precise angle measurements and rotations.
purposes.
1 PC | 3 Axis LED digital readout SDS2-3Va |
1 PC | Protection cover |
1 PC | Instruction Manual (English) |
1 PC | Cable |

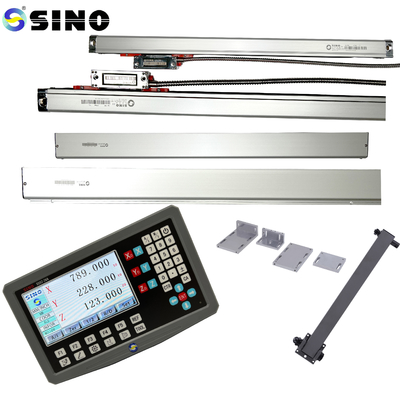

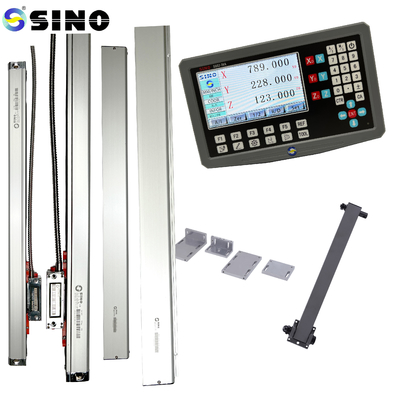

Product image /photos:
The rack in the picture is optioned, not standard product.
