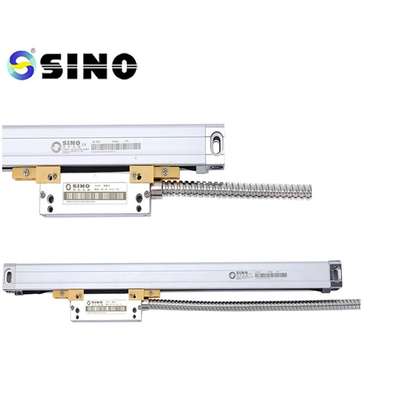

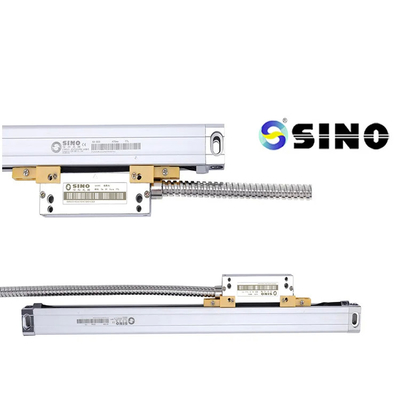

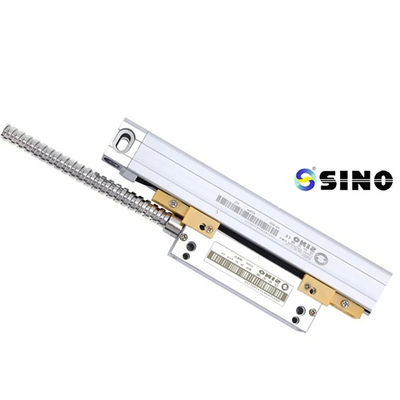

SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um

SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um
SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um

Large Image :  SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: KA200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 30000 sets per month

SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um

Description
Item Name: SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um Application: Small Linear Encoder With Digital Readout Systems
Usage: Scaling Position Sensor Customized Length: 300mm/400mm/50mm/60mm/70mm
Length: 70mm/80mm/90mm/100mm/120mm Material: Aluminum
Function: EDM/Lathe/Grinding/Boring Machine Resolution: 0.5μm/1μm/5 μm
High Light:

SINO KA200 Mini Glass Linear Scale

,

0.5um Mini Glass Linear Scale

,

CNC Linear Encoder Scale

SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale For Lectura Digital 5um 1um 0.5um





Product Description:


The Aluminum Mini Glass Linear Scale CNC Linear Encoder Scale is a precision measurement device commonly used in CNC (Computer Numerical Control) systems. It is designed to provide accurate and reliable readings of linear movements with high resolution. The digital readout scale is available in different increments, such as 5um, 1um, and 0.5um, allowing for various levels of precision.



Key Features:



Mini Glass Linear Scale: The linear scale is compact and made of aluminum, ensuring durability and stability during operation. The glass surface provides excellent optical properties for accurate measurements.
CNC Linear Encoder: The encoder is designed specifically for CNC systems, providing precise feedback on the linear position of the machine's axes.
High Resolution: The scale is available in different resolutions, including 5um, 1um, and 0.5um, allowing for fine measurements and precise control over axis movements.
Easy Installation: The linear scale is designed for easy installation on CNC machines. It typically includes mounting brackets and hardware for convenient setup.
Compatibility: The encoder scale is compatible with a wide range of CNC systems, making it suitable for various machines and applications.


Usage:


The Aluminum Mini Glass Linear Scale CNC Linear Encoder Scale is commonly used in CNC machines for accurate measurement and position feedback. It provides crucial information to the control system, allowing for precise movement and positioning of machine axes.



Suitable Applications:



CNC Milling Machines: The linear scale can be used in CNC milling machines to accurately measure the movement of the workpiece and cutting tools, ensuring precise milling operations.
CNC Lathes: It is applicable in CNC lathes to provide accurate position feedback of the cutting tool, allowing for precise turning, facing, and threading operations.
CNC Routers: The encoder scale is suitable for CNC routers, enabling accurate positioning and control of the cutting tool for precise routing and engraving operations.
CNC Grinders: It can be used in CNC grinding machines to measure the movement of the grinding wheel with high precision, ensuring precise material removal.
CNC Wire EDM (Electrical Discharge Machining): The linear encoder scale is commonly utilized in CNC wire EDM machines to accurately measure the movement of the wire and control the cutting process with high precision.



Package contains:



Short Linear Glass Scale, KA200-30mm, 1 piece


Available Resolution: 0.5/1/5 um.

According to the requirements of the users, customized encoder lengths (L0) can be offered.(Length:30-360mm)



SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um 0





L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension


Detail Information:



SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um 1





All linear scales will be tested before delivery. Here is a sample of a scale's testing report.



SINO KA200 Mini Glass Linear Scale CNC Linear Encoder Scale 5um 1um 0.5um 2
