SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement

SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement
SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement

Large Image :  SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS2-3VA, KA300, Ka500, ka600
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100010 pcs per month

SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement

Description
Name: SINO 3 Axis DRO TTL Input For High Resolution Lathe & Milling Measurement Number Of Axis: Digital Readout Kits With 3 Axis Digital Readout Systems
Color: Grey/black-Colors Signal: TTL/RS422 Digital Readout System
Voltage: Digital Readout Kits: AC100-240V / 50-60Hz Suitable For: Milling Machine, Grinding Machine, EDM Machine
Resolution: 1um,5um,0.5um Material: Metal
High Light:

SINO 3 Axis Lathe DRO

,

TTL 3 Axis Lathe DRO

SINO 3 Axis DRO Digital Readout TTL Input Signal For Milling Machine Lathe



SINO 3 Axis DRO TTL Input For High Resolution Lathe & Milling Measurement



Product Description:


The SINO 3 Axis DRO (Digital Readout) is a digital measurement device specifically designed for milling machines and lathes. It provides accurate and real-time measurements of the machine's X, Y, and Z axes, enabling precise positioning and control during machining operations. The DRO system accepts TTL input signals, ensuring compatibility with various types of scales used in milling machines and lathes.



Key Features:



Three-Axis Measurement: The SINO DRO supports three-axis measurement, typically the X, Y, and Z axes. It accurately displays the position of each axis, allowing operators to monitor and control their machining operations effectively.
Digital Readout: The DRO system provides a digital display that shows the measured positions in real-time. The clear and easy-to-read display allows for quick and accurate readings of the machine's coordinates.
TTL Input Signal: The SINO DRO accepts TTL (Transistor-Transistor Logic) input signals, which are commonly used with linear scales and rotary encoders in milling machines and lathes. This ensures compatibility and easy integration with existing measurement systems.
High Accuracy and Resolution: The DRO system offers high accuracy and resolution, allowing for precise measurement and control of the machine's movements. This is essential for achieving tight tolerances and producing high-quality machined parts.
User-Friendly Interface: The SINO DRO is designed with a user-friendly interface, making it intuitive to operate. The menu options and navigation are straightforward, enhancing the user experience and reducing setup time.
Multiple Display Modes: The DRO system offers various display modes, such as absolute and incremental measurements, inch/metric conversion, and preset values. These modes provide flexibility and customization options to meet specific machining requirements.



Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


A high-performance universal display console with milling, lathe, and grinding capabilities is provided by the SDS2-3VA.

This three-axis type supports the connection of up to three linear encoders. To combine axes or modify the input to fit equipment made by other manufacturers, there are more interfaces available. Please refer to the compatibility guide for encoders below.

strong die cast casing with a front panel membrane that is both haptic and long-lasting.

large, easily readable LCD screen.

PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are among the features.



Packaging List :

1 PC 3 Axis LED digital readout SDS2-3Va
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

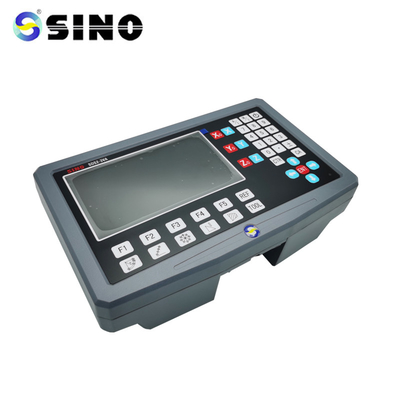

SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement 0

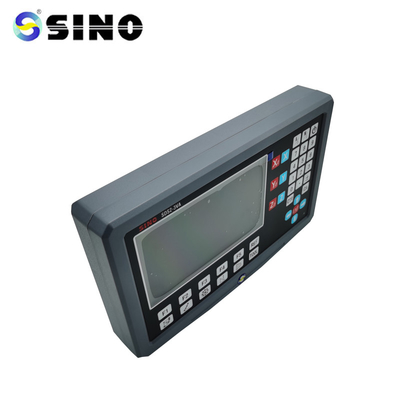

SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement 1

The rack in the picture is optioned, not standard product.

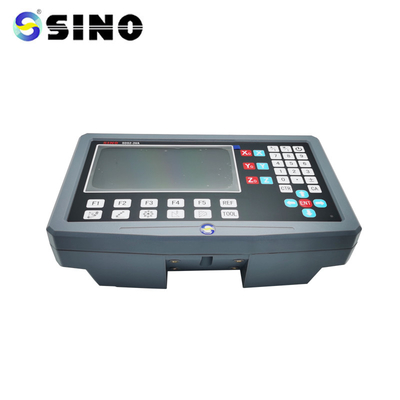

SINO 3 Axis Lathe DRO Readout TTL Input For High Resolution Milling Measurement 2
