Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS5-4VA, KA300, Ka500
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000 pcs per month

DRO System SINO SDS5-4VA 4 Axis Digital Readout Kit TTL For Milling Lathe Glass Linear Scale IP64

Description
Name: Glass Linear Encoder With Digital Display Controller, Sino SDS5-4VA Number Of Axis: Axis 5 DRO Measuring Instrument
Color: Grey Signal: Digital Readout Kits: TTL / RS422
Voltage: Digital Readout System: AC100-240V / 50-60Hz Suitable For: Milling Machine, Boring Machine, CNC Machine
Resolution: 1um,5um,0.5um Material: Metal
High Light:

4 Axis Digital Readout Kit

,

TTL Digital Readout Kit

,

IP64 SINO Digital Readout System

DRO System SINO SDS5-4VA 4 Axis Digital Readout Kit TTL For Milling Lathe Glass Linear Scale IP64​





With a dual frequency laser instrument and intelligent software created by Loksshun, the SDS5 DRO has up to 600 non-linear error compensation points on each axis. After contrastively measuring data for data processing, a data file is created and saved on the hard drive, which is used to minimize error of the subsequent measure.

SDS5-4VA DRO Measuring Machine Functions:



1. Measurement transformation in mm/inch

2. Transformative Absult/Relative

3. Compensation for Linearity Errors

4. The Midsplit Function

5. No Modification

6. Complete Reference Mark

7. Establishing Resolutions



Specifications of SINO SDS5-4VA digital readout system + Grating Ruler



Details

Product: Digital Readout System SINO SDS5-4VA

Sort: DRO Luxury Type

Four axes of input

Signal of Input: TTL/RS-422

Metal housing

Application: Glass scales for EDM, milling, drilling, and grinding machines, as well as CNC and manual lathes

Use: Position measuring tool for grating scale with one, three, or four axes

Certification: ISO9001, CE, and ROHS

IP67 Sealing Protection Class

Feature: User-friendly, simple to install, robust and long-lasting

Report on Machinery Tests: Given



Packaging List :

1 PC 4 Axis LED digital readout SDS5-4VA
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

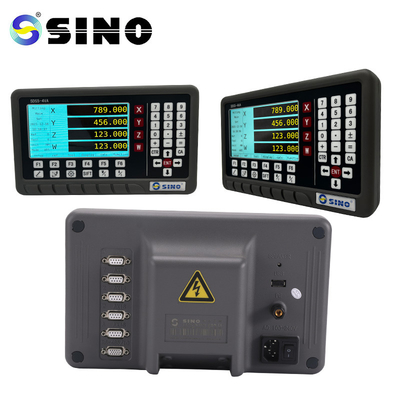

DRO System SINO SDS5-4VA 4 Axis Digital Readout Kit TTL For Milling Lathe Glass Linear Scale IP64 0

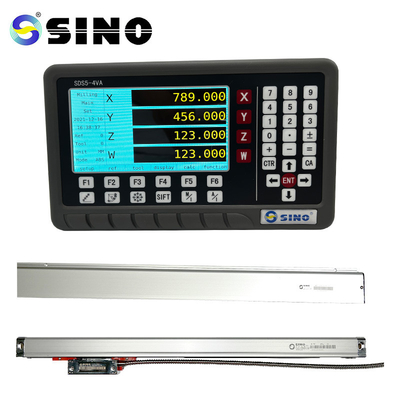

DRO System SINO SDS5-4VA 4 Axis Digital Readout Kit TTL For Milling Lathe Glass Linear Scale IP64 1

The rack in the picture is optioned, not standard product.



DRO System SINO SDS5-4VA 4 Axis Digital Readout Kit TTL For Milling Lathe Glass Linear Scale IP64 2
