Product Details:
|
| Item Name: | Digital 4-axes Readout System | Usage: | 4-axis CNC Drilling Device |
|---|---|---|---|
| System: | SDS5-4VA DRO System | Scale Model: | KA-600/KA-300/KA-500 |
| Signal Output: | EIA-422-A/RS422/TTL | Resolution: | 0.005 / 0.001 / 0.0005 Mm |
| Encoder Length: | 70-3000mm | Display Type: | 7" LCD |
| Interface: | RS-232-C/ RS-485 | ||
| High Light: | SINO SDS5-4VA Digital Display Meter,4 Linear Scale Digital Display Meter |
||

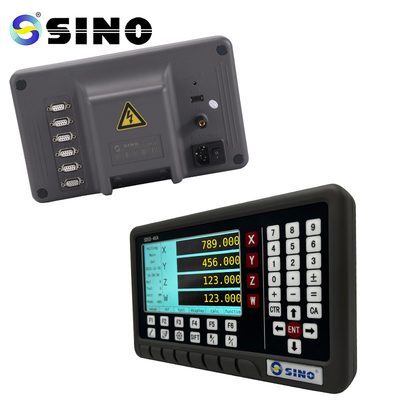

SINO SDS5-4VA High Precision Digital Display Meter 4 Linear Scale For CNC Machine Milling
The SDS5-4VA digital display meter is a device used to measure and display various physical quantities such as voltage, current, or temperature. The specifications and functions of the SDS5-4VA may include a high-precision display, multiple input options, portability, and compatibility with different sensors.
When comparing the SDS5-4VA with other models, its advantages may lie in its specific measurement range, accuracy, display resolution, input options, and any additional features such as data logging or communication interfaces. It's important to consider the specific requirements of your application to determine which model best suits your needs.

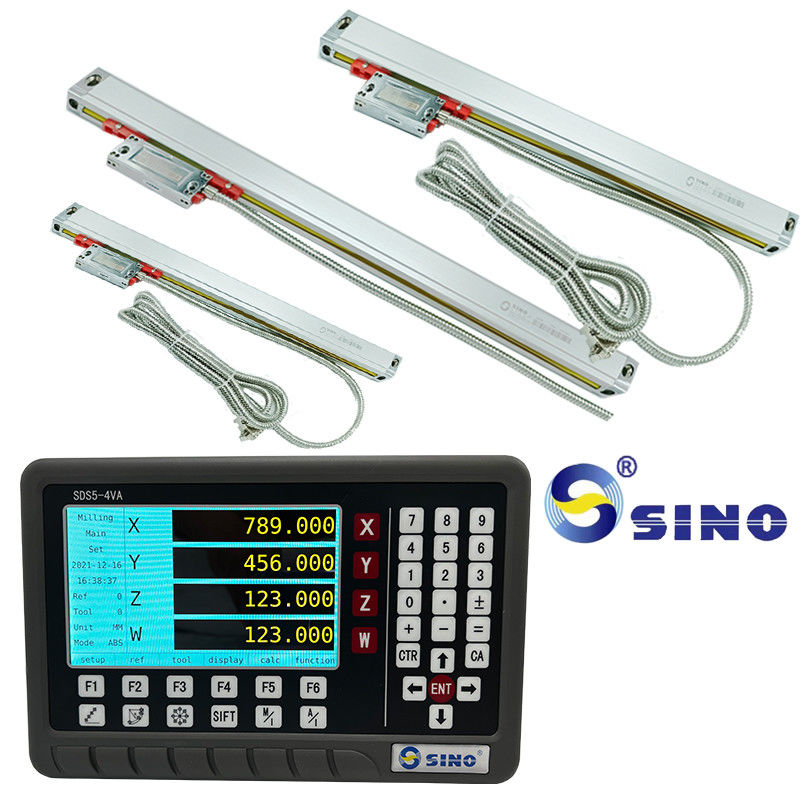

Package included:
x1 TFT DRO SDS5-4VA
linear glass scales from the KA series, often models KA-600 or KA-300, x2 pc.
Additionally, the normal length of the extension signal line for scales is 3000mm, though customized lengths can be given.
as required by the users.(1M to 10M)
Package list:
| Item name | Four axes digital Readout system |
| DRO Model | SDS5-4VA |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Rack for DRO | Rack L400 |
| Protection cover for X scale | Type D / M |
| Protection cover for Y scale | Type D / M |
| Bracket for scales |
T-bracket (2 sets) |
| Others | Cable / Screws / Manual |
Detail Information:
Pin Description:
All linear scales will be tested before delivery. Here is a sample of a scale's test report.
