Description
Item Name: SINO SDS5-4VA Digital Display Meter: 4 Linear Scales & High Precision For CNC Milling Usage: 4-axis CNC Drilling Device
System: SDS5-4VA DRO System Scale Model: KA-600/KA-300/KA-500/KA-200
Signal Output: EIA-422-A/RS422/TTL Resolution: 0.005 / 0.001 / 0.0005 Mm
Encoder Length: 70-3000mm Display Type: 7" LCD
Interface: RS-232-C/ RS-485
Highlight:

SINO SDS5-4VA Digital Display Meter

,

4 Linear Scales Digital Display Meter

SINO SDS5-4VA High Precision Digital Display Meter 4 Linear Scale For CNC Machine Milling​

SINO SDS5-4VA Digital Display Meter: 4 Linear Scales & High Precision For CNC Milling



Product Description:


The SINO SDS5-4VA High Precision Digital Display Meter is a versatile and accurate measuring device designed for CNC machine milling applications. It comes bundled with four linear scales, allowing simultaneous measurement along multiple axes and enabling precise positioning during the milling process.



Key Features:



Digital Display Meter: The SDS5-4VA features a digital display meter that provides clear and easy-to-read measurements. The meter accurately displays position readings from the linear scales, allowing operators to monitor the movement of the CNC machine in real time.
High Precision: This digital display meter offers high precision, ensuring accurate measurement of linear movements. It helps achieve precise cutting, drilling, and milling operations, resulting in quality finished products and reduced material waste.
Four Linear Scales: The SDS5-4VA comes with four linear scales, enabling measurement on multiple axes simultaneously. This feature is particularly beneficial in CNC milling machines that have multidirectional movements along the X, Y, and Z axes. It allows for precise alignment and coordinated positioning during complex milling tasks.
User-Friendly Interface: The digital display meter is designed with a user-friendly interface, making it easy to operate. It offers intuitive controls and functions, allowing operators to quickly set parameters, switch between measurement modes, and access additional features.
Multiple Measurement Modes: The SDS5-4VA supports various measurement modes, including absolute and incremental modes. The absolute mode provides the actual position reading from the starting point, while the incremental mode measures the relative movement from the previous position. These modes offer flexibility for different milling operations and user preferences.
Compatibility: The digital display meter is compatible with CNC milling machines and can be integrated seamlessly into existing systems. It supports standard communication protocols and can interface with other CNC components, such as motors and controllers, to ensure precise coordination and synchronization.
Convenient and Durable Design: The SDS5-4VA is designed to withstand the demands of industrial environments. It features a sturdy housing that protects the display meter and linear scales from dust, debris, and vibrations common in milling applications. Its compact size and easy installation add convenience to the setup process.

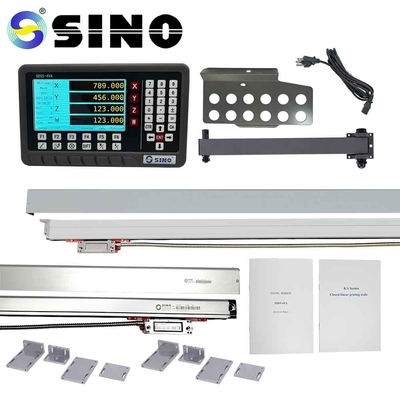

Package included:



x1 TFT DRO SDS5-4VA

linear glass scales from the KA series, often models KA-600 or KA-300, x2 pc.

Additionally, the normal length of the extension signal line for scales is 3000mm, though customized lengths can be given.

as required by the users.(1M to 10M)



Package list:



Item name Four axes digital Readout system
DRO Model SDS5-4VA
Linear scale for axis X KA-600 / KA-300: 70-3000mm
Linear scale for axis Y KA-600 / KA-300: 70-3000mm
Rack for DRO Rack L400
Protection cover for X scale Type D / M
Protection cover for Y scale Type D / M
Bracket for scales

T-bracket (2 sets)

Others Cable / Screws / Manual
