Product Details:
|
| Name: | SDS6-3Va DRO Sensor KA600 Linear Scale Encoder | Number Of Axis: | 3 Axis Dro Systems |
|---|---|---|---|
| Material: | Iron/Metal | Signal: | Digital Readout: TTL / RS422/EIA-422-A |
| Voltage: | Digital Readout: AC100-240V / 50-60Hz | Suitable For: | Milling Machine, Boring Machine, Lathe |
| Resolution: | 1um,5um,0.5um | ||
| High Light: | High Precision 3 Axis Digital Readout,Optical 3 Axis Digital Readout |
||
Dro High Precision Optical Digital Linear Scale With Iron 3 Axis Digital Readout System
Digital readout details:
For machinists and operators in the industrial sector, the SDS6-3VA digital readout system is a popular choice because to its high accuracy, dependability, and ease of use.
Please be advised that since September 2021, when my knowledge cutoff was set, the SDS6-3VA digital readout system may have undergone changes or been replaced with a newer version.
Improved Functions of SINO Opitical Sensor
1. A 7-inch TFT LCD panel was installed in place of the digital screen;
2. Support for multiple languages;
3. Modification of brightness;
4. Stability of the program;
5. More advanced anti-interference capabilities and EMC test signs.
Supply voltage range: AC 80V–260V; 50–60Hz; compatible with US plugs
15VA of power was used.
Temperature range for operation: 0 to 45 degrees Celsius
Storage temperatures: -30 to 70 degrees Celsius
Square wave TTL/RS422 is the allowed input signal for the readout.
Acceptable input signal frequency: less than 5 MHz
Display resolution: 5 µm/1 µm/0.5 µm/0.1 µm
Minimum resolution for a digital display angle is 0.0001/pulse.
| 1 PC | 3 Axis LED digital readout SDS6-3V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

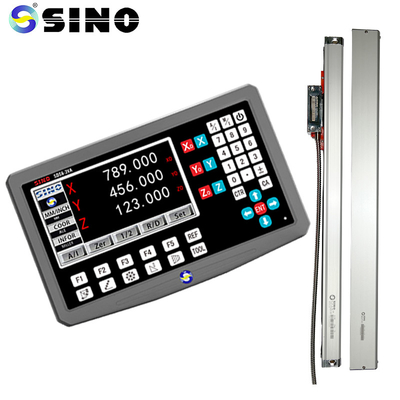

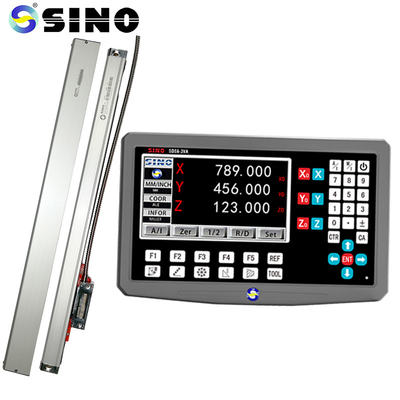

Product image /photos:
The rack in the picture is optioned, not standard product.
