24V Magnetic Linear Encoder for Milling Machines with 5µm Resolution

24V Magnetic Linear Encoder for Milling Machines with 5µm Resolution

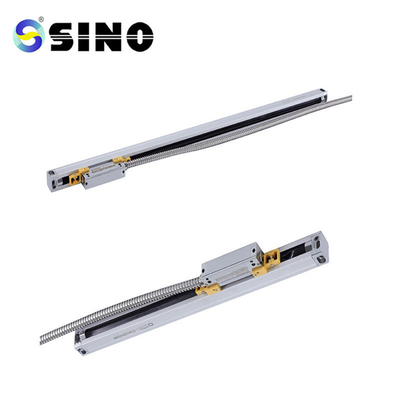

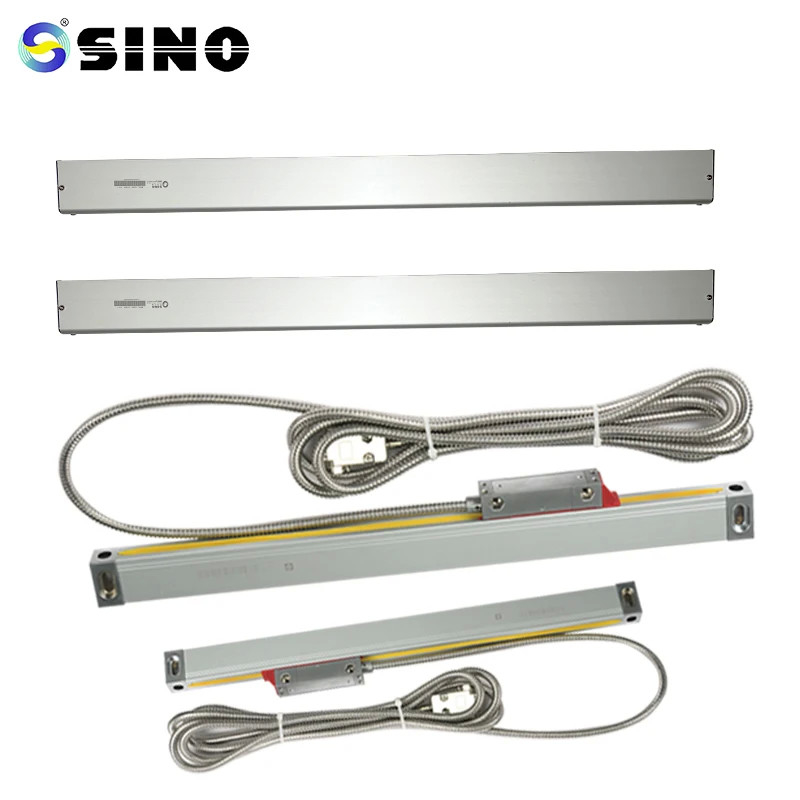

24V Magnetic Linear Encoder for Milling Machines with 5µm Resolution 24V Magnetic Linear Encoder for Milling Machines with 5µm Resolution 24V Magnetic Linear Encoder for Milling Machines with 5µm Resolution 24V Magnetic Linear Encoder for Milling Machines with 5µm Resolution

Large Image :  24V Magnetic Linear Encoder for Milling Machines with 5µm Resolution

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS,ISO9001
Model Number: KA800MC-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per month

24V Magnetic Linear Encoder for Milling Machines with 5µm Resolution

Description
Item Name: Incremental Encoder Magnetic Feature: SINO Encoder Magnetic Scale
Type: Big Lathe Milling Grinding Machine Scale Model: KA-800MC-5um
Output Signal: RS422 Or TTL Resolution: 5um
Measuring: 10m 12m Up 100m Humidity: 100% Non-condensing
System: SINO DRO SYSTEM Supply Voltage: 24VDC Or 5VDC

Incremental Encoder Magnetic Digitial Readout System Machine Tools



Key features



Magnetic technology: The encoder utilizes a magnetic principle to measure linear displacement along the milling machine axes. This method ensures reliable and accurate position feedback.

5µm resolution: The encoder offers a resolution of 5µm, meaning it can detect movements as small as 5 micrometers. This high resolution contributes to the precision and fine-tuning capabilities of the milling machine.

24V power supply: The encoder operates at a 24V power supply, providing a stable and consistent voltage for reliable performance. Make sure to connect it securely to a suitable power source.

Easy installation: The RoHS 24V Magnetic Linear Encoder is designed for convenient installation on milling machines. It typically attaches to the moving axis of the machine, and its measurement output interfaces with the machine's control system or a separate digital readout (DRO) system.

Milling machine compatibility: This encoder is specifically designed for milling machine applications. It can be used with various types of milling machines, including vertical mills, horizontal mills, and CNC milling machines.


Product  Advantage

Reading head with small size, which occupies a small space and is easy to install.
High Performance: Our SINO magnetic grating and precision optical ruler series have passed strict quality inspection. Meet the standard of accuracy and stiffness good straightness and precise measurement. Travel Length: 120mm to 100,000mm Resolution: 5μm
Sealed read-head with the perfect structure of the profile akes it matches IP67 protection class
KA800MC-5 magnetic scale is mainly suitable for processing and measuring occasions with low and medium precision requirements

Magnetic scales offer several advantages, including:

Accuracy: Magnetic scales can provide high-resolution measurements, often in the sub-micron range, making them suitable for applications requiring precise positioning.
Non-contact: The read head does not physically contact the scale, which eliminates wear and tear, reducing the need for maintenance and increasing the lifespan of the system.
Immunity to contaminants: Magnetic scales are less susceptible to environmental factors such as dust, dirt, and liquids because the read head does not come into direct contact with the scale.
Durability: Magnetic scales are typically robust and resistant to shock and vibration, making them suitable for use in industrial environments.


Technical parameter



Magnetic Scale Sensor
Reference signal Each 5mm(C)
Pitch 5mm
Ruler tape specifications 5+5mm
Resolution 5µm
Available Gap 2mm
Accuracy ± (0.035 + 0.02 x L)mm,L:effective measuring length,Unit:m
Cable 5 core or 8 core
Output form TTL or RS-422
Gap between reading head and protective steel belt 0.8~1.8mm
Supply voltage 5VDC±5%,24VDC±5%
Current consumption (no load) 40mAMAX
Current consumption (with load) 120mAMAX(5V,RL=120Ω)
60mAMAX(28V,RL =1.2kΩ)
Maximum speed 5m/s(MS T 5)
Anti-vibration 100m/s2[10Hz~2000Hz]
Impact resistance 1000m/s2(11ms)
Protection level of reading head IP 67 DIN 40050/IEC 529
Operating temperature -20℃~85℃
Storage temperature -20℃~85℃
Humidity 100% Non-condensing
Electrical protection Power polarity inversion protection, output short-circuit current protection
Standard  cable 3m, LMAX=50m (cable of Read- head)
Measurement length cable


LMAX=100m



Encoder Magnetic Mcale Application

Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)
Machining Centers, PVC Cutting Machine, Wood Cutting Machine, Glassworking machine, Material handling


Detail picture:

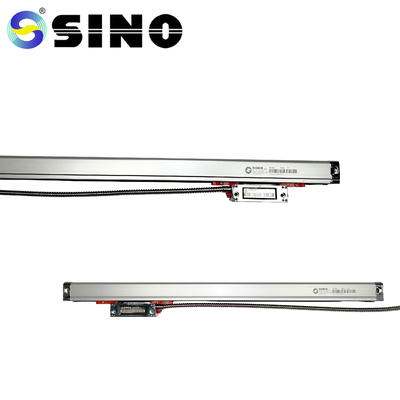

24V Magnetic Linear Encoder for Milling Machines with 5µm Resolution 0

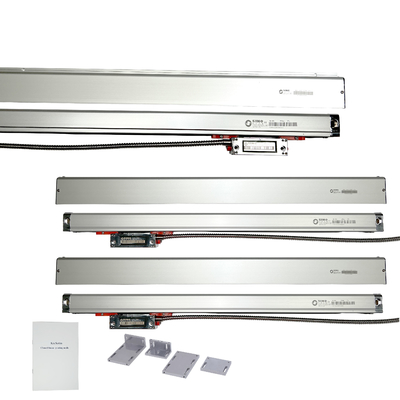

24V Magnetic Linear Encoder for Milling Machines with 5µm Resolution 1


Why choose us?

Magnetic scale can be cut as your requirement
A fully-sealed read-head with the perfect structure of the profile makes it match the IP67 protection class
Advanced technician and inner structure
Automatic gain control technician reduced the requirement for installation, The gap between the reader and tape can be 3mm (5 microns)
Prepare time:1 weekday, fast Delivery By FedEx IP


Questions & Answer :

1, What’s the max measurement length?
Measurement length up to 100,000mm
2, What are the length 120mm~ 100000mm represent?
Answer: All these lengths mean table travel length ( table moving size, NOT table size ) of the machine x y z-axis. You may need to add an extra 5.5 each for the total length.
3, If I need a full set of 2 Axis dro with scales for my lathe machine, how should I purchase them?
Answer: You can select, they are " 1pc 2 Axis dro " " Travel length **mm of the linear encoder or magnetic encoder" " Travel length ***mm", then you will receive what you want.
4, My machine's x-axis moving length is 260mm, and y-axis moving length is 530mm, can you offer this kind of length that is not listed in the options?
Answer: Each scale measuring range has a 20mm increment. That means the 250mm scale measuring range can reach up to 270mm. So you can select the 270mm scale and 570mm scale for your machine.
5, If i only buy 1 piece scale separately, can I get the user manual?
Answer: The user manual comes with DRO, But you can contact the seller to get the download.
6, What should I choose for my lathe or mill?
Answer: The lathe usually is a 2 axis readout while the mill can be either 2 axes or 3 axis
7, Can I cut the scale if it's too long for my machine?
Answer: Technicality NO. if you are a novice, otherwise, the scale may probably be damaged and cannot be used
8, Are they all shipped by Fed Ex, UPS, DHL?
Answer: Yes. Standard FedEx support and others are available
