Grey Glass Linear Scale With Four Axes DRO SINO SDS5-4VA Lathe Digital Readout Counter System

Brand Name:	SINO
Model Number:	SDS5-4VA, KA300, Ka500, KA600
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

Sino SDS5-4VA Digital Readout Linear Encoder Display

Number Of Axis:

Four-axis Measuring Apparatus

Color:

Grey

Signal:

Digital Readout Kits: TTL / RS422 / EIA-422-A

Voltage:

AC100-240V/50-60Hz Digital Display Controller

Suitable For:

Milling Machine, Boring Machine, EDM Machine

Resolution:

1um,5um,0.5um

Material:

Metal

Supply Ability:

1000 pcs per month

Highlight:

Four Axes Glass Linear Scale

Lathe Digital Readout Glass Linear Scale

Product Description

Glass Linear Scale With Four Axes, DRO SINO SDS5-4VA Lathe Digital Readout Counter System

Path summarization is another feature included in DRO. Following selection, the program is used right away in lathes, EDM, precision grinding machines, milling machines, precision coordinate boring machines, ground boring machines, precision boring machines, and other specialized functions.

Digital Readout DRO Functions for the SDS5-4VA:

Compensation for Non-Linear Errors

Positioning a PCD Hole Around a Circumference

Auxiliary Zero Position Function for 200 Points

ROM disc with a high capacity for storage

RS232-based real-time coordinate transmission

USB file transmission capabilities

This system uses four coordinate systems, including the machine coordinate system.

SINO SDS5-4VA digital readout system specifications plus optical linear scale

Details

The SDS5-4VA Digital Readout System from SINO

Form: DRO Luxurious Form

input in four dimensions

Signal output: TTL/RS-422

residence: metal

Glass scales for manual or CNC lathes, milling, drilling, grinding, and EDM machines

Instrument for Single, Three, or Four Axis Grating Scale Position Determination

Among the guarantees are ISO 9001, ROHS, and CE.

IP67 Sealing Protection Class

trustworthy, strong, simple to install, and intuitive

An analysis of the machine test is given.

Packaging List :

1 PC	3 Axis LED digital readout SDS5-4VA
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

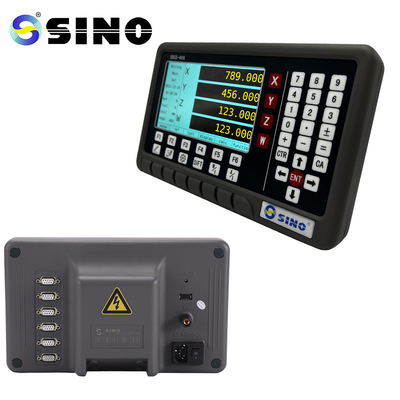

Grey Glass Linear Scale With Four Axes DRO SINO SDS5-4VA Lathe Digital Readout Counter System 0

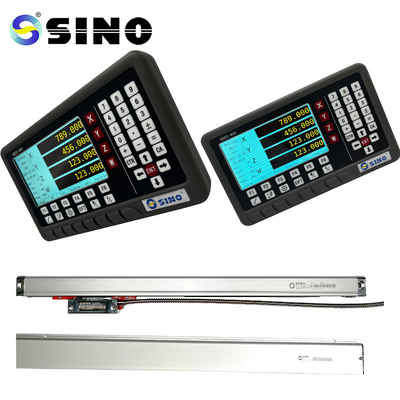

Grey Glass Linear Scale With Four Axes DRO SINO SDS5-4VA Lathe Digital Readout Counter System 1

The rack in the picture is optioned, not standard product.

Grey Glass Linear Scale With Four Axes DRO SINO SDS5-4VA Lathe Digital Readout Counter System 2
