Product Details:
|
Item Name: | Small Optical Scale SINO KA200-360mm | Application: | Making Use Of Digital Readout Technology And A Small Linear Encoder |
---|---|---|---|
Usage: | Sensor Position Scaling | Customized Length: | 30mm/40mm/50mm/60mm |
Length: | 70mm/80mm/90mm/100mm | Material: | Aluminum |
Function: | EDM/Lathe/Grinding/Boring Machine/Milling Machine | Resolution: | 0.5μm/1μm/5 μm |
High Light: | 0.005mm Linear Scale,360mm Linear Scale |

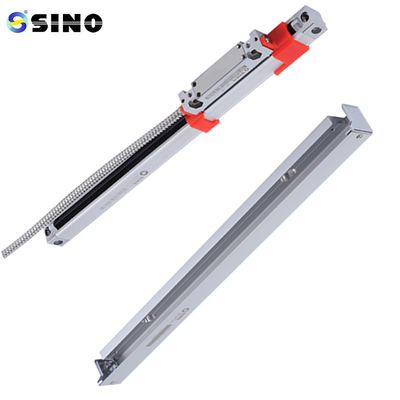

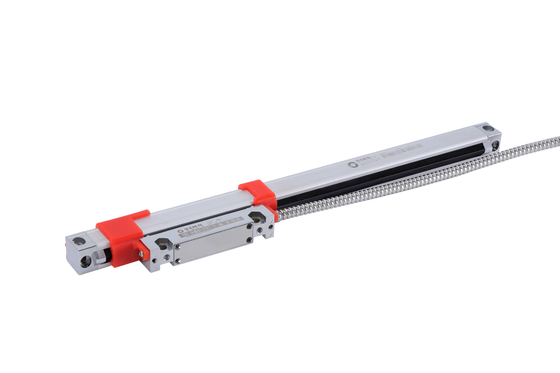

Original Sino KA-200 0.005mm Linear Scale Linear Sensor 30mm-360mm 5um
Package includes:
One segment of KA200-30mm-360mm, a short linear glass scale
Based on the KA-500 grating ruler, the KA-200 grating ruler features enhanced internal and external architecture.
Since the micro grating ruler is intended to have a smaller structural size than the KA-500, it is suitable for applications with limited installation and location on smaller devices. There is a range of 30 to 360 mm for use.
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
