Glass Linear Encoder

EDM Small Linear Scale Digital Readout For Lathe Drilling Milling Machine KA300-120MM-5UM

All Category

CNC Machine Accessories

Ms. Berlina

sino_trade@163.com

18620615002

Contact Now

EDM Small Linear Scale Digital Readout For Lathe Drilling Milling Machine KA300-120MM-5UM

Brand Name:	SINO
Model Number:	KA500, KA300, KA600, KA200
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

Sigma Linear Encoder KA500-170 Mm

Application:

Digital Readout Counter With Grating Ruler

Usage:

Scaling Position Sensor

Customized Length:

320mm/370mm/420mm/470mm

Length:

70mm/120mm/170mm/220mm

Material:

Aluminum

Function:

EDM/Lathe/Grinding/Boring Machine/CNC Machine

Resolution:

0.5μm/1μm/5μm

Supply Ability:

3000 sets per month

Highlight:

EDM Small Linear Scale

Small Linear Scale Digital Readout

Product Description

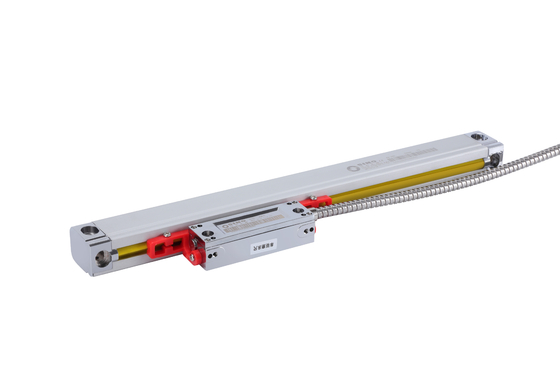

Small Linear Scale Digital Readout for Lathe Drilling Milling Machine KA300-120MM-5UM

The KA-500 mini-encoder was designed with machine tools that have constrained installation and operation spaces in mind. Demands from clients with positioning criteria can be fulfilled. Measurements are 70 x 470 mm.

Package includes:

One piece of linear scale grating, KA500-170mm

A resolution of 0.5um/1um/5um is present.

Customized encoder lengths (L0) can be provided based on the needs of the clients.(Length: 70-470 mm)

Model	L0	L1	L2	Model	L0	L1	L2
KA500-70	70	172	182	KA500-320	320	422	432
KA500-120	120	222	232	KA500-370	370	472	482
KA500-170	170	272	282	KA500-420	420	522	532
KA500-220	220	322	332	KA500-470	470	572	582
KA500-270	270	372	382

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Operating Instructions

The user needs to read the Safety Considerations, General Description, and

the whole of content 3 of Chapter 1.

2. In addition to the Safety Considerations, the General Description, and all the information in

The specialists need to closely adhere to Chapters 1 through 3 for installation, testing, and maintenance.

comprehend each and every idea presented in chapters 4-5.

This operating handbook is limited to the integrated circuits of the SINO KA family.

encoded in a linear fashion.

4. Kindly go over the safety advice listed below. It includes crucial details regarding

Take care when using your linear encoder.

Detail Information:

EDM Small Linear Scale Digital Readout For Lathe Drilling Milling Machine KA300-120MM-5UM 0

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

EDM Small Linear Scale Digital Readout For Lathe Drilling Milling Machine KA300-120MM-5UM 1
