24V Magnetic Scale Linear Encoder With 1 Micron Resolution Linear Scale CNC

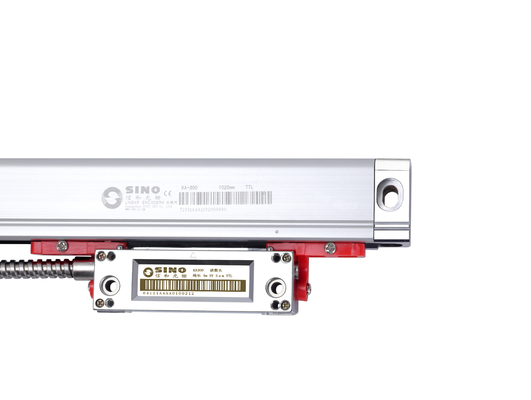

Large Image : 24V Magnetic Scale Linear Encoder With 1 Micron Resolution Linear Scale CNC

Product Details:

Place of Origin:	P.R.China
Brand Name:	SINO
Certification:	CE,RoHS,
Model Number:	KA-600, KA-300, KA-500, KA-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000 per month

Contact Now

24V Magnetic Scale Linear Encoder With 1 Micron Resolution Linear Scale CNC

Description

Item:	SINO Linear Encoder Scale With 1 Micron Resolution	Model:	KA Series 1020mm
Usage:	Testing Apparatus And Metal Cutting Machine	Type:	Glass Grating Optical Linear Encoder
Resolution:	1μm / 0.5μm / 5μm	Output Signal:	TTL / RS422
System:	SINO Digital Readout Display	Keyword:	Linear Scale Encoder
Highlight:	24V Magnetic Scale Linear Encoder , CNC Magnetic Scale Linear Encoder

24V Magnetic Scale Linear Encoder With 1 Micron Resolution Linear Scale CNC

The resolution of the SINO KA series scales could be set to 5, 1, or 0.5 microns.

Instead of black sealing lips, the KA-300 model has yellow ones.

It may redcue the resistance more smoothly, improving the encoders' measuring accuracy.

Product data sheet

Model	KA-300
Travel length(mm)	70-1020 (50mm/Specification)
Scaling distance	0.02mm(50 lines/mm)
Accuracy	±3/±5/±15µm 20℃
Resolution(um)	1um,0.5um
Reference Signal	Every 50mm per length specification
Seal protection	IP53
working speed	(resolution)>=5um: >=60m/min <=1um: >=120m/min
Output signal	TTL / RS422 / EIA-422-A
Operating temperature	0℃-45℃
Storage temperature	-20℃--80℃
Humidity	100% not condensed
Voltage	5V/24V

Package list: 1 * KA300 Linear encoder scale, 1 *screw sets

Protection Cover is not included. It can be optioned by different propose.

Product images

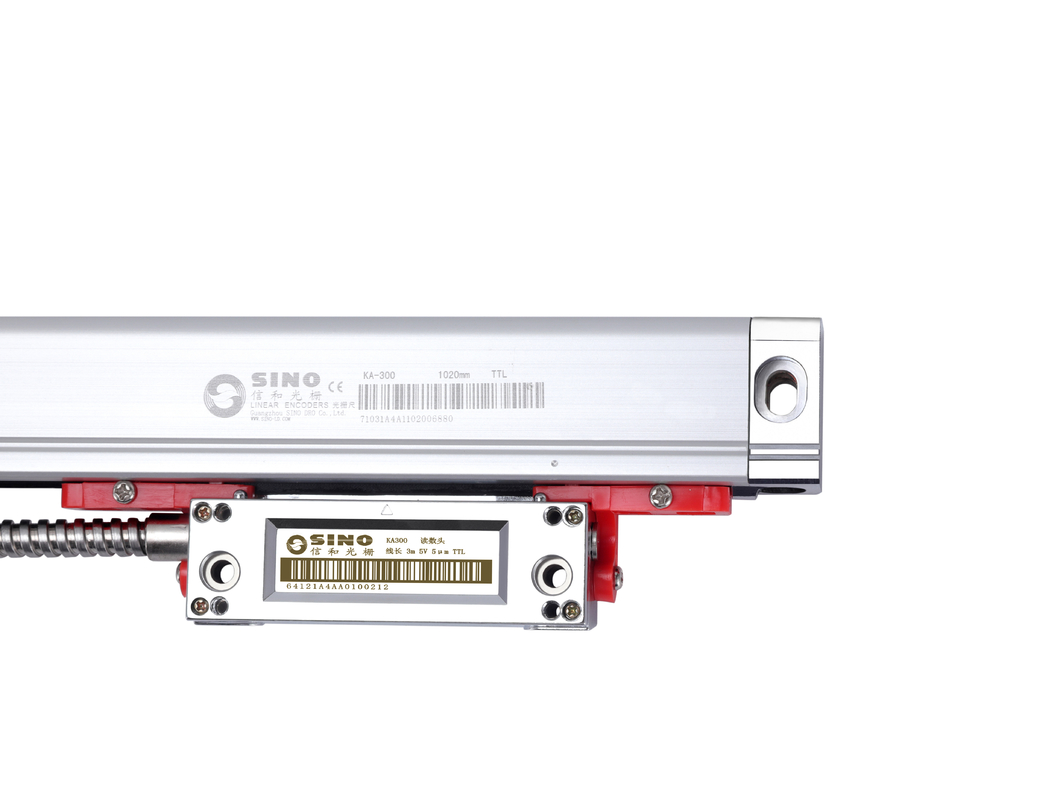

24V Magnetic Scale Linear Encoder With 1 Micron Resolution Linear Scale CNC 0

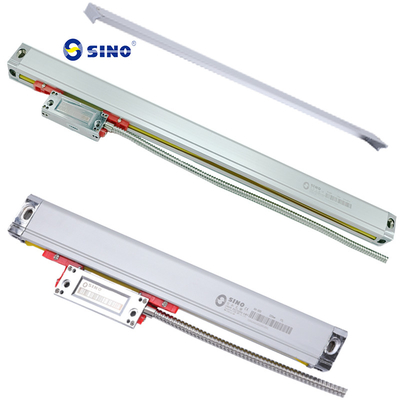

24V Magnetic Scale Linear Encoder With 1 Micron Resolution Linear Scale CNC 1

24V Magnetic Scale Linear Encoder With 1 Micron Resolution Linear Scale CNC 2

Covers' Options

24V Magnetic Scale Linear Encoder With 1 Micron Resolution Linear Scale CNC 3

24V Magnetic Scale Linear Encoder With 1 Micron Resolution Linear Scale CNC 4

All scales will be tested before delivery.

Each scale have its own test report:

24V Magnetic Scale Linear Encoder With 1 Micron Resolution Linear Scale CNC 5
