SINO SDS6-3V Glass Linear Scale Meter Lathe Machine With Digital Readout DRO 3 Axis 1um

Brand Name:	SINO
Model Number:	SDS6-3V, KA300, Ka500, KA600, KA200
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SDS6-3V Digital Readout For Lathe, Grinding, And Cutting Equipment

Number Of Axis:

3-axis Readout Counter With Display

Color:

Grey

Display:

7 Digits LED

Signal:

Digital Readout: TTL / RS422/EIA-422-A

Voltage:

Digital Readout: AC100-240V / 50-60Hz

Suitable For:

Milling Machine, Lathe, Boring Machine, EDM Machine, Grinding Machine

Supply Ability:

1000 pcs per month

Highlight:

SINO SDS6-3V Glass Linear Scale

Digital Readout Glass Linear Scale

1um Digital Readout Kits

Product Description

SINO SDS6-3V Glass Linear Scale Meter Lathe Machine With Digital Readout DRO 3 Axis 1um

The SDS6-3V is a high-performance universal display console that may be used for turning, grinding, and milling.
All of the fundamental and distinctive features of the SDS2 Series, an all-purpose DRO, may be replaced by the SDS6 Digital Readout, which makes use of the most recent 16-bit SCM technology.
The measuring speed has risen and the control mechanism is more streamlined and straightforward.All the axes together can provide up to 40 non-linear adjustment points.

Sino Digital Readout DRO Features Are Improved

Extend the calculator function: Users should be able to select the number of digits to be placed behind the radix point, such as 3, 4, or 5, in addition to the calculator function being provided to the DRO programs for the milling, lathe, and EDM machines.

Non-linear error correction: The system has up to 40 sections of non-linear error compensation to improve machining precision.

3. In inch display mode, the number of decimal digits can be chosen.

There are two possible decimal digit counts: four and five. Four digits can satisfy the requirement for long scales, and five digits can satisfy the requirement for high precision. To learn more about the changes, please consult the handbook.

Specifications :

Supply Voltage range: AC 80V~260V; 50~60Hz,US Plug available

Power consumption: 15VA

Operating temperature: 0~45 degrees centigrade

Storage temperature: -30~70 degrees centigrade

Readout allowable input signal: TTL/RS422 square wave

Allowable input signal frequency: Less than 5MHz

Display resolution: 5µm/1µm/0.5µm/0.1µm

Min resolution of digital display angle : 0.0001/pulse

Packaging List :

1 PC	3 Axis LED digital readout SDS6-3V
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

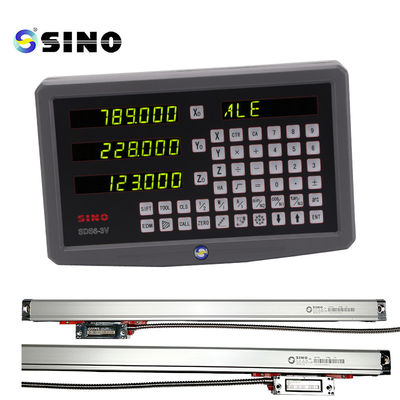

SINO SDS6-3V Glass Linear Scale Meter Lathe Machine With Digital Readout DRO 3 Axis 1um 0

SINO SDS6-3V Glass Linear Scale Meter Lathe Machine With Digital Readout DRO 3 Axis 1um 1

The rack in the picture is optioned, not standard product.

SINO SDS6-3V Glass Linear Scale Meter Lathe Machine With Digital Readout DRO 3 Axis 1um 2
