Metal TFT DRO System With Three Axes Bridgeport Digital Readout For Milling Machine

Brand Name:	SINO
Model Number:	SDS5-4VA, KA-600, KA-300, KA-300, KA500
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

Three Axes Digital Display Kit For Large Metal TFT Milling Machine

Usage:

Large Three-axe Milling Machine

System:

3 Axes Large Milling DRO SDS5-4VA

Scale Model:

Linear Encoder: KA-600, KA-300, KA-300

Signal:

Linear Encoder: TTL / RS422

Resolution:

Linear Encoder: 5 Or 1 Micron

Voltage:

Large Milling Digital Display With Three Axes, AC 100V–240V

Meas. Travel:

Linear Encoder: 1000-3000mm, 70-1020mm, 70-1020mm

Supply Ability:

3000 sets per month

Highlight:

Metal TFT DRO System

Three Axes TFT DRO System

Three Axes Bridgeport Digital Readout

Product Description

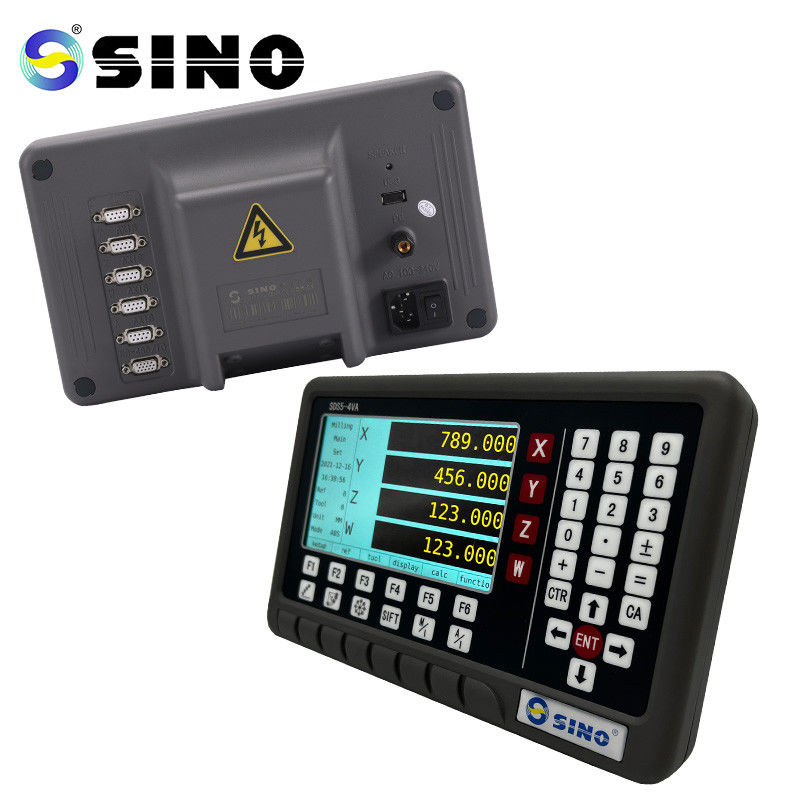

Metal TFT DRO System With Three Axes Bridgeport Digital Readout For Milling Machine

Particular to the three-axis large-size milling machine is the digital display kit.

Three conventional linear encoders (KA-600 or KA-300) are attached to a single TFT LCD display (DRO SDS5-4VA).

Model KA-600 linear encoder: 1000 - 3000 mm

Model of KA-300 linear encoder: 70 - 1020 mm

Package list:

Item name	3 axis large size metal TFT milling machine digital display kit
Digital Readout (DRO)	SDS5-4VA
Linear scale for axis X	1000-3000mm
Linear scale for axis Y	70-1020mm
Linear scale for axis Z	70-1020mm
Rack for DRO	L400
Protection cover for X scale	Type M
Protection cover for Y scale	Type D
Protection cover for Z scale	Type D
Bracket for scales	T-bracket (2 or 3 sets, depend on the size)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit
Smooth “R”
Simple “R”
Oblique Line Hole Positioning
PCD Circle Equally Dividing
Bevel Processing
Rectangular Inner Chamber Progressive Machining

Detail Information:

Metal TFT DRO System With Three Axes Bridgeport Digital Readout For Milling Machine 0

Metal TFT DRO System With Three Axes Bridgeport Digital Readout For Milling Machine 1

Metal TFT DRO System With Three Axes Bridgeport Digital Readout For Milling Machine 2

Metal TFT DRO System With Three Axes Bridgeport Digital Readout For Milling Machine 3

Pin Description:

Metal TFT DRO System With Three Axes Bridgeport Digital Readout For Milling Machine 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Metal TFT DRO System With Three Axes Bridgeport Digital Readout For Milling Machine 5
