TFT Displayed 3 Axis Digital Readout DRO Durable With Resolution Of 0.001mm
  • name
  • name

TFT Displayed 3 Axis Digital Readout DRO Durable With Resolution Of 0.001mm

Brand Name: SINO
Model Number: SDS5-4VA, KA-300, KA-500, KA-600, KA200
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
TFT Lathe Machine Digital Counter Kit With Three Axes
Usage:
3-axes Placement Of A Lathe Machine
System:
3 Axes SDS5-4VA TFT DRO
Scale Model:
Grating Scale: KA-600, KA-300, KA-500, KA200
Signal:
Grating Scale: TTL / RS422 / EIA-422-A
Resolution:
0.005mm / 0.001mm / 0.0005mm
DRO Mounting:
On The Slide Box
Meas. Travel:
Grating Scale: 70-3000mm
Display:
TFT Display
Voltage:
Counter Power: 100V - 240V
Supply Ability:
3000 sets per month
Highlight:

3 Axis Digital Readout DRO

,

TFT Display Digital Readout DRO

,

0.001mm Digital Readout DRO

Product Description

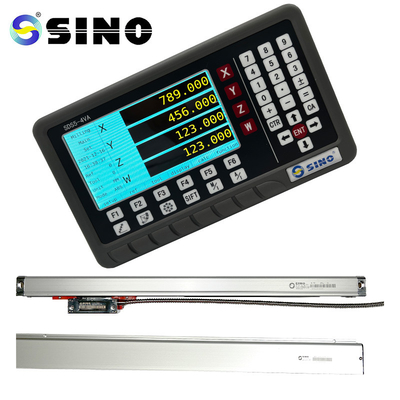

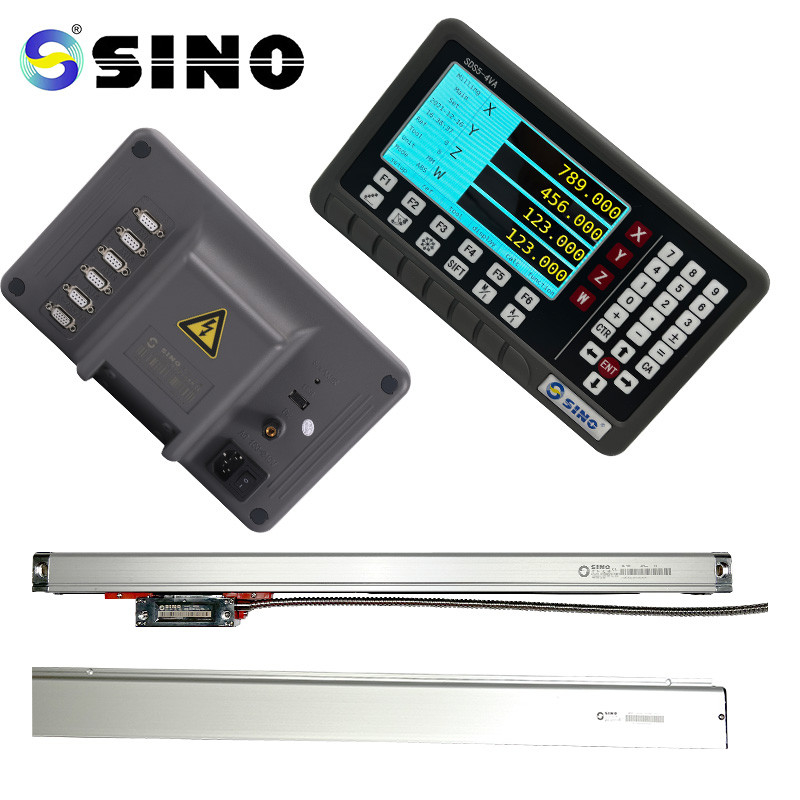

TFT Displayed 3 Axis Digital Readout DRO Durable With Resolution Of 0.001mm





Specifically designed for three-axis lathe machine placement is this digital counter kit.



The sliding box of the lathe is where the TFT DRO SDS5-4VA should be mounted.



For axis Z, use the KA-600 grating scale; for axis X and Z1, use the KA-300 or KA-500 grating scale.



Package list:



Item name TFT lathe machine digital counter kit with three axes
Digital Readout (DRO) SDS5-4VA
Linear scale for axis Z KA-300 / KA-600 820-3000mm
Linear scale for axis Z1 KA-300 / KA-500 270-520mm
Linear scale for axis X KA-300 / KA-500 270-520mm
Rack for DRO Rack for lathe (50C)
Protection cover for Z scale Type D / M
Protection cover for Z1 scale Type D / H
Protection cover for X scale Type D / H
Bracket for scales

T-bracket (1 set) / KA-500 bracket (2 pcs)
Others Cable / Screws / Manual



Functions for lathe machine:



1. Diameter to Radius Conversion
2. Diameter Compensation for Tools
3. Measurement of Tapers
4. 200 Tool Storage Room​



Detail Information:
