Product Details:
|
| Item Name: | Digital Readout Kit For Two Axes Large Size Metal TFT Milling Machine | Usage: | Large Size Milling Machine |
|---|---|---|---|
| System: | Two Axes Digital Readout SDS5-4VA For Large Size Mill | Scale Model: | Linear Encoder: KA-600, KA-300, KA-200, KA-500 |
| Signal: | Linear Encoder: TTL / RS422 / EIA-422-A | Resolution: | Linear Encoder: 0.005mm/0.001mm |
| Voltage: | DRO Power: AC 100V-240V | Meas. Travel: | Linear Encoder: 1000-3000mm, 70-1020mm |
| High Light: | Multilingual Bridgeport Milling Machine,2 Axes Bridgeport Milling Machine |
||
Bridgeport Milling Machine, Multilingual 2-Axes Mini Mill DRO TFT Digital Readout
Everything required for a large-size, two-axis milling machine is included in the kit.

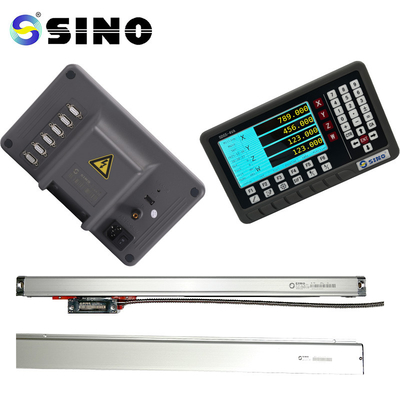

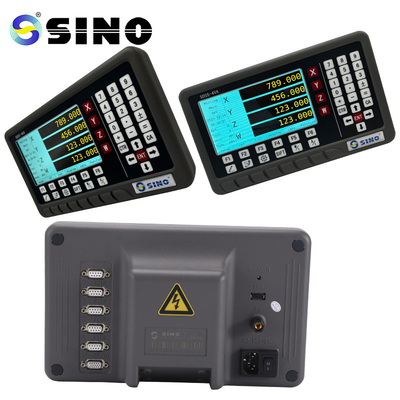

Included with the SDS5-4VA digital readout is a pair of conventional linear encoders, either KA-600 or KA-300, and measures four axes.
KA-600 model: 1000 x 3000 mm
KA-300 model: 70 - 1020 mm
Package list:
| Item name | Digital readout kit for a two-axis large-size metal milling machine |
| Digital Readout (DRO) | SDS5-4VA |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Functions for milling machine:
1. In the middle divide
2. A silky "R"
3. A straightforward "R"
4. Hole Positioning using Oblique Lines
5. PCD Circle Splitting Equidistantly
6. Processing Bevel
7. Inner Chamber Progressive Machining in Rectangular Shape
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
