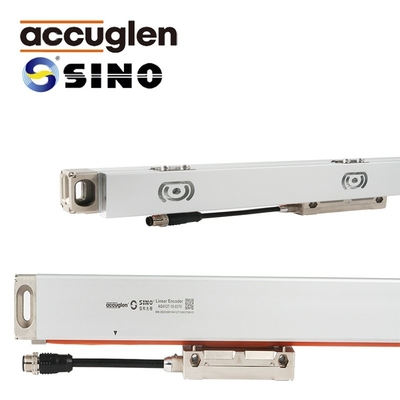

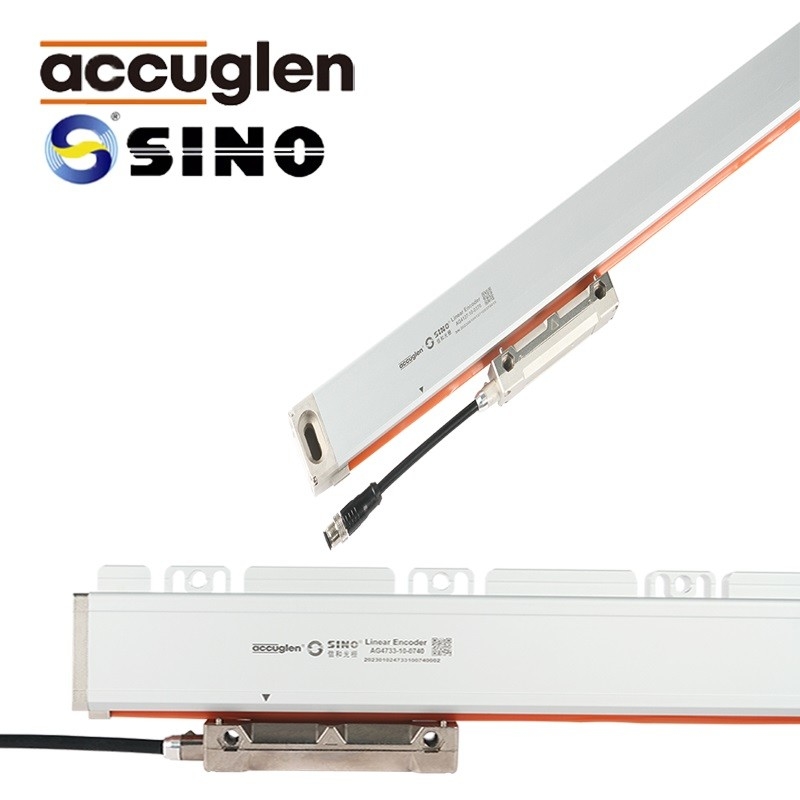

0.005mm Linear Grating Ruler 30mm-360mm 5um Original Sino-KA-200

Brand Name:	SINO
Model Number:	KA200 30-360mm
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO Linear Grating Ruler KA200 30-360mm, In Miniature

Application:

Making Use Of Digital Readout Technology And A Small Linear Encoder

Usage:

Scaling Of Sensor Position

Length:

70mm/80mm/90mm/100mm

Material:

Metal

Function:

EDM/Lathe/Grinding/Boring Machine/Milling Machine

Resolution:

1μm/5 μm

Color:

Silvery

Cross Section:

16mm*16mm

Max Of Measuring Speed:

60m/min

Supply Ability:

3000 sets per month

Highlight:

30mm Linear Grating Ruler

360mm Linear Grating Ruler

Product Description

0.005mm Linear Grating Ruler 30mm-360mm 5um Original Sino-KA-200

Package includes:

A closed absolute linear grating ruler, KA200-30mm-360mm. The KA-200 grating ruler has improved the internal and external structure on the basis of the KA-500 grating ruler. Make it more suitable for operation and installation in narrow areas, as it is designed to have a smaller structural size than the KA-500. 30 to 360 millimeters are usable lengths

installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover

0.005mm Linear Grating Ruler 30mm-360mm 5um Original Sino-KA-200 0

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

0.005mm Linear Grating Ruler 30mm-360mm 5um Original Sino-KA-200 1

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

0.005mm Linear Grating Ruler 30mm-360mm 5um Original Sino-KA-200 2
