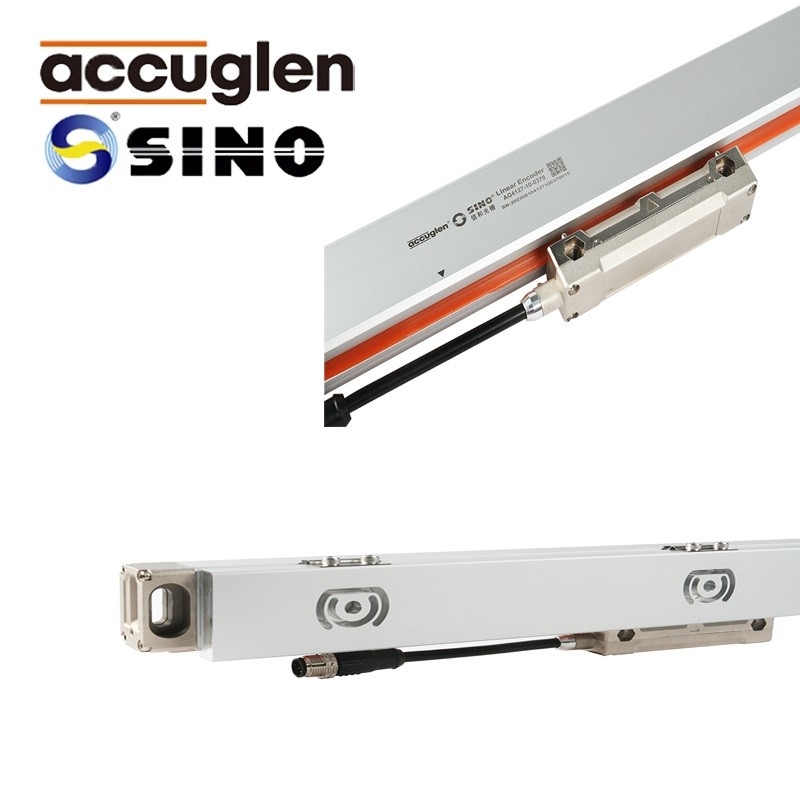

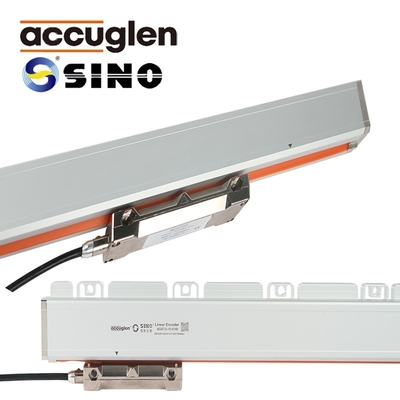

Original Sino-KA-200 0.005mm Linear Grating Ruler, 30mm-360mm, 5um

Name: Original Sino-KA-200 0.005mm Linear Grating Ruler, 30mm-360mm, 5um
Brand: Guangzhou Sino International Trade Co.,Ltd
SKU: KA200 30-360mm
Availability: InStock

Brand Name:	SINO
Model Number:	KA200 30-360mm
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO KA200 30-360mm Linear Grating Ruler

Application:

Making Use Of Digital Readout Technology And A Small Linear Encoder

Applicable:

CNC Machine Tools And Linear Motors

Measure Length (mm):

30-360mm

Material:

Metal

Resolution:

0.5μm/1μm/5 μm

Color:

Silvery

Cross Section:

16mm*16mm

Max Of Measuring Speed:

60m/min

Protection Level:

IP53

Output Signal:

TTL

Supply Ability:

3000 sets per month

Highlight:

5um Linear Grating Ruler

0.005mm Linear Grating Ruler

Product Description

Original Sino-KA-200 0.005mm Linear Grating Ruler, 30mm-360mm, 5um

Package includes:

A KA200-30mm-360mm closed absolute linear grating ruler. Based on the KA-500 grating ruler, the KA-200 grating ruler features an upgraded internal and external structure. Because it is intended to have a smaller structural structure than the KA-500, it is more suited for installation and operation in confined spaces. Useful lengths range from 30 to 360 millimeters.

installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover

Original Sino-KA-200 0.005mm Linear Grating Ruler, 30mm-360mm, 5um 0

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

Original Sino-KA-200 0.005mm Linear Grating Ruler, 30mm-360mm, 5um 1

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

Original Sino-KA-200 0.005mm Linear Grating Ruler, 30mm-360mm, 5um 2
