Product Details:
|
| Item Name: | SINO KA200 30-360mm Linear Grating Ruler | Application: | Making Use Of Digital Readout Technology And A Small Linear Encoder |
|---|---|---|---|
| Applicable: | CNC Machine Tools And Linear Motors | Measure Length (mm): | 30-360mm |
| Material: | Metal | Resolution: | 1μm/5μm |
| Color: | Silvery | Housing Cross Section: | 16mm*16mm |
| Biggest Speed: | 60m/min | Sealing Protection: | IP53 |
| Output Signal: | TTL | After-sale: | 1 Year Warranty |

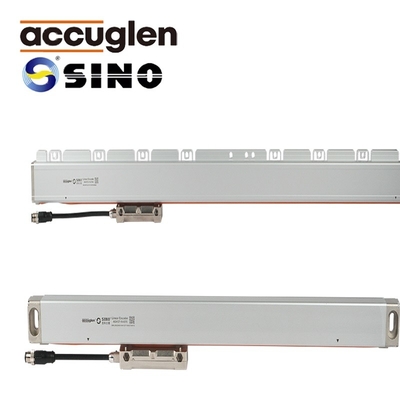

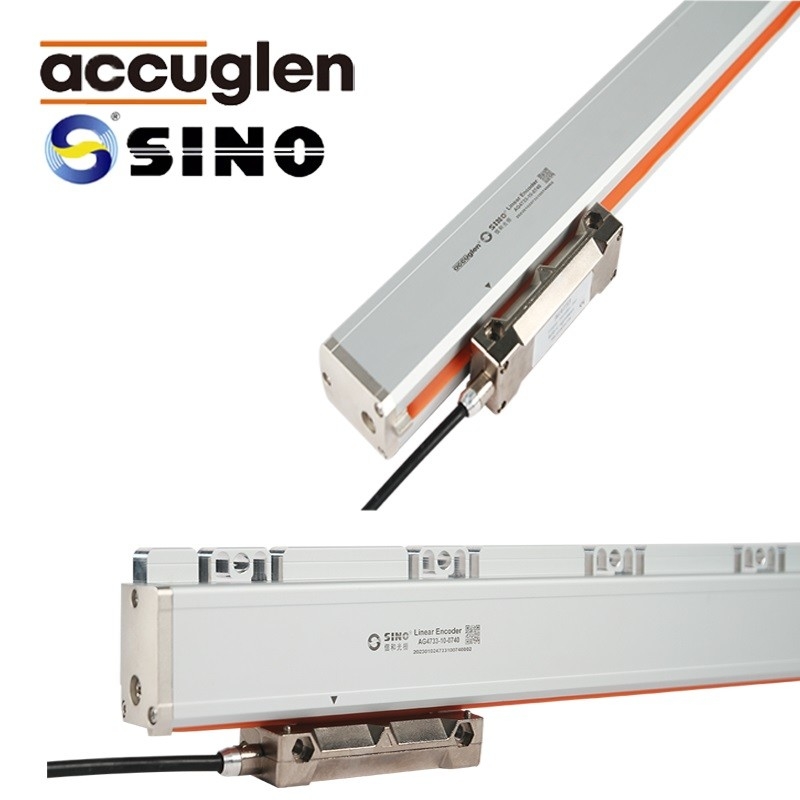

Milling lathe ka-200 digital readout connection linear scale encoder
The following features of our grating ruler:
1. Fast movement speed, above 60 meters per minute
2. The bearings are equipped with sliding components to provide easy movement and good repeated positioning function
3. Multi layer isolation wire mesh and metal soft shell protection use signal cables to provide excellent waterproof and anti-interference performance
4. The anodizing treatment of aluminum alloy material adopts the wear resistance of the scale body and scale head projection hard chrome plated alloy
5. Linear scale can be used on various machines with digital readings and can assist in processing within the machine by locating the position.
installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
